Description
S4232 BOLT HOLE 300 SERIES

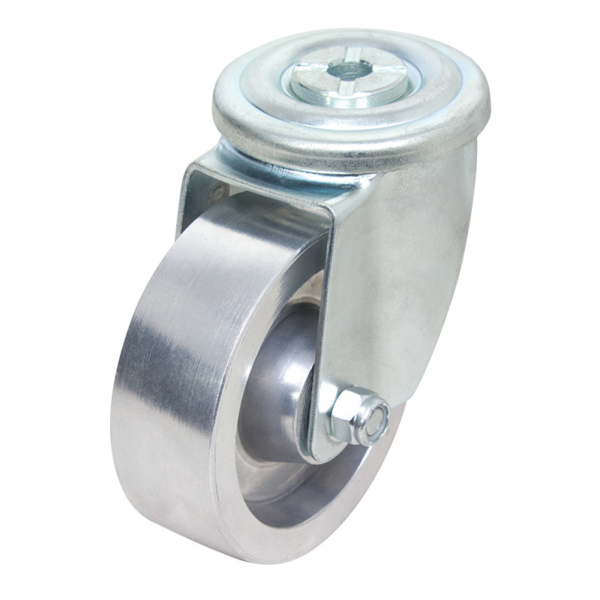

100mm Aluminium Bolt Hole 300 Series Castor (S4232)
The S4232 from Richmond is a swivel frame castor and features an aluminium wheel. This swivel castor is part of our 300 series bolt hole range and has a maximum capacity of 200kg. The S4232 uses oilless bushs for wheel rotation and is bolt mounted. The swivel frame design of this castor allows the load to be steered. The diameter of the aluminium wheel is 100mm, the wheel width is 36mm and you can order separately (Part Number: AL472).
| Product Code | S4232 |
|---|---|
| Wheel Diameter (mm) | 100 |
| Frame Type | Swivel |
| Wheel Width (mm) | 35 |
| Wheel Type | Aluminium |
| Wheel Code | AL472 |
| Wheel Bearing Type | Oilless DU Bush |
| Castor Height (mm) | 130 |
| Swivel Radius (mm) | 125 |
| Bolt Hole Size (mm) | 12 |
| Maximum Load Capacity (kg) | 200 |
| Recommended Load Capacity (kg) | 150 |
| Temperature range (°C) | -30° to 300° |
| Download CAD Drawing (STEP file) | Download |
|---|
