R4053 RIGID 300 SERIES CASTOR

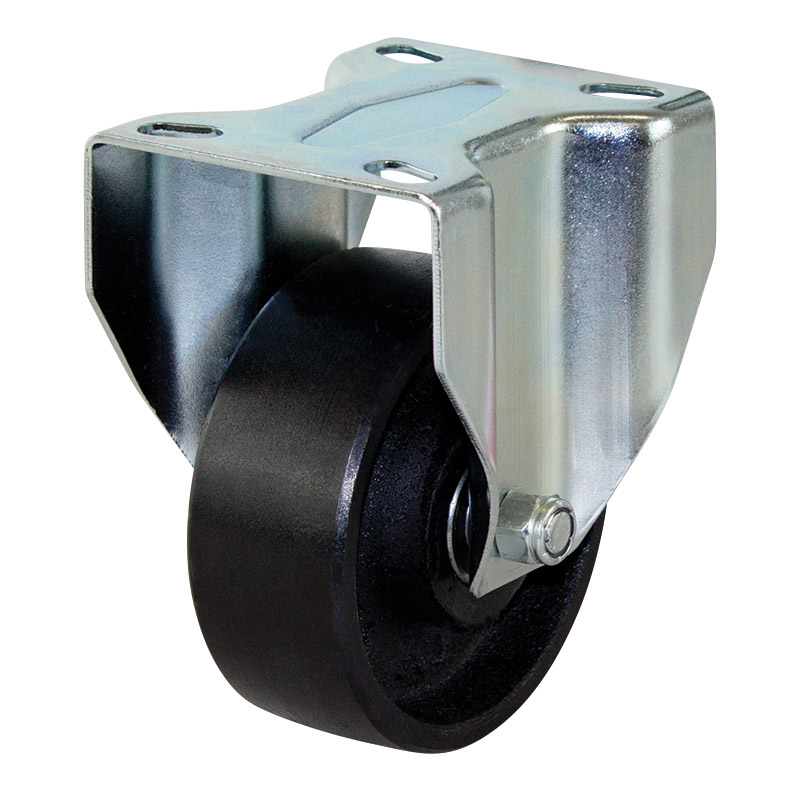

100mm Cast Iron Wheel 200kg Capacity Castor (R4053)
The R4053 from Richmond Wheel and Castor Co. is a rigid frame castor and has a cast iron wheel. This rigid castor is in our 300 series plate range and has a top load capacity of 200kg. The R4053 is assembled with ball bearings on the castors axle and is baseplate mount. The rigid frame design of this castor only allows linear movement unless used with swivel castors. The outside diameter of the cast iron wheel is 100mm, the wheel width is 38mm and can be ordered separately (Ci400).
| Product Code | R4053 |
|---|---|
| Wheel Diameter (mm) | 100 |
| Frame Type | Rigid |
| Wheel Width (mm) | 38 |
| Wheel Type | Cast Iron |
| Wheel Code | Ci400 |
| Wheel Bearing Type | Ball Bearing |
| Castor Height (mm) | 130 |
| Maximum Load Capacity (kg) | 200 |
| Recommended Load Capacity (kg) | 150 |
| Download CAD Drawing (STEP file) | Download |
|---|
