Description
S4050 SWIVEL 300 SERIES CASTOR

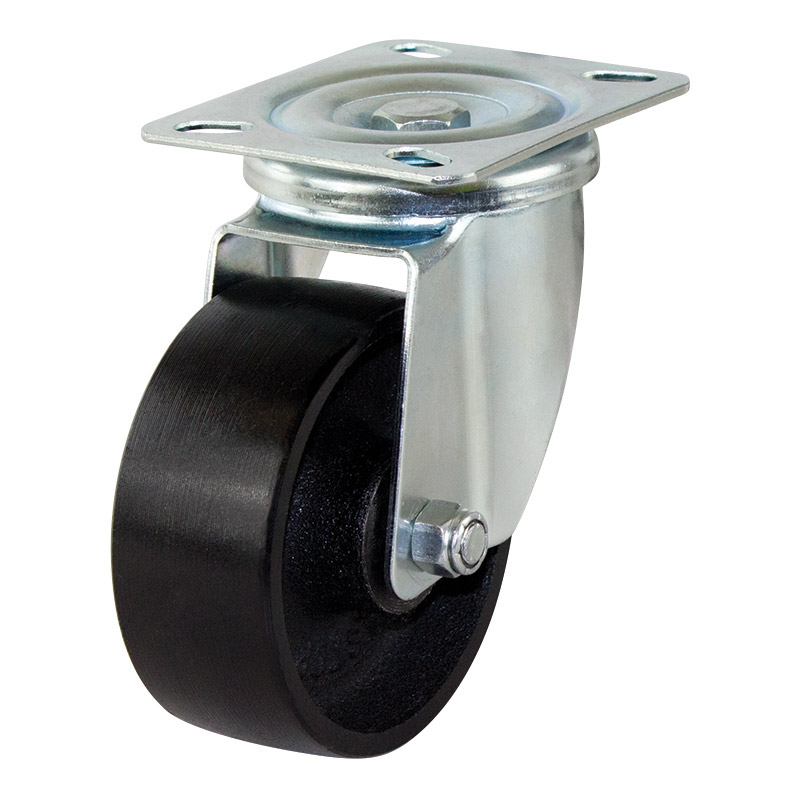

100mm Cast Iron Wheel 200kg Capacity Castor (S4050)
The S4050 manufactured by Richmond Wheel and Castor Co. is a swivel frame castor and uses a cast iron wheel. This swivel castor is in our 300 series plate range and has a top load capacity of 200kg. The S4050 uses plain bearings for wheel rotation and is baseplate mount. This castors swivel frame allows for full 360° swivel rotation. The diameter of the cast iron wheel is 100mm, the wheel width is 38mm and you can order separately (Part Number: Ci421)
| Product Code | S4050 |
|---|---|
| Wheel Diameter (mm) | 100 |
| Frame Type | Swivel |
| Wheel Width (mm) | 38 |
| Wheel Type | Cast Iron |
| Wheel Code | Ci421 |
| Wheel Bearing Type | Plain Bore |
| Castor Height (mm) | 130 |
| Swivel Radius (mm) | 90 |
| Maximum Load Capacity (kg) | 200 |
| Recommended Load Capacity (kg) | 150 |
| Temperature range (°C) | -30° to 300° |
| Download CAD Drawing (STEP file) | Download |
|---|
