S4052 SWIVEL 300 SERIES CASTOR
100mm Cast Iron Wheel 200kg Capacity Castor (S4052)

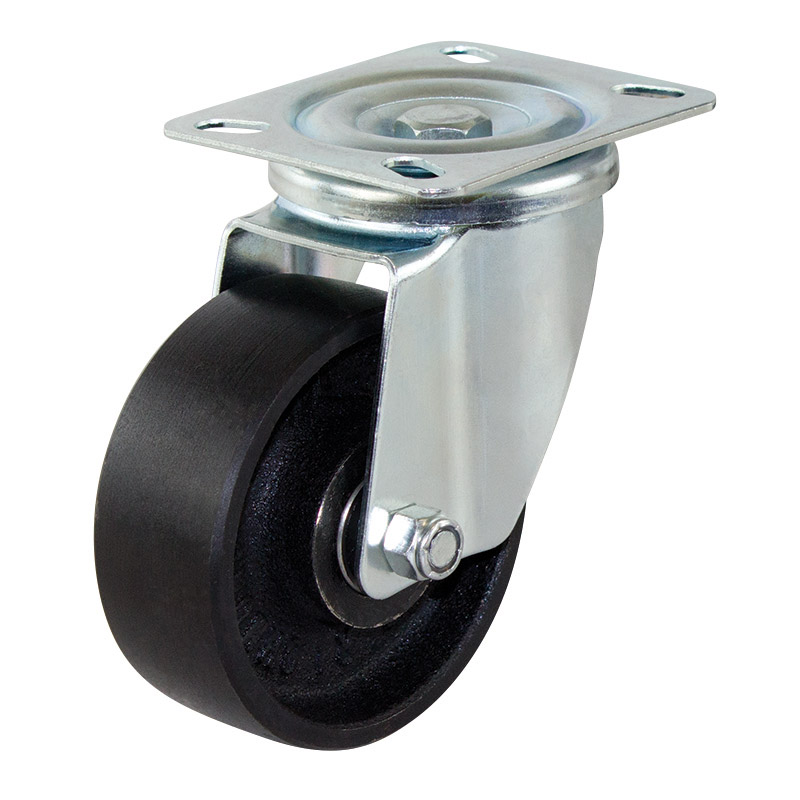

The S4052 manufactured by Richmond Wheel and Castor Co. is a swivel frame castor and uses a cast iron wheel. This swivel castor is in our 300 series plate range and can hold loads up to 200kg. The S4052 wheel is fitted with ball bearings and is baseplate mount. The swivel frame design of this castor allows the load to be steered. The cast iron wheel diameter is 100mm, the wheel width is 38mm and you can order separately (Part Number: Ci400). To order this castor with a brake, search for S4052B.
| Product Code | S4052 |
|---|---|
| Wheel Diameter (mm) | 100 |
| Frame Type | Swivel |
| Wheel Width (mm) | 38 |
| Wheel Type | Cast Iron |
| Wheel Code | Ci400 |
| Wheel Bearing Type | Ball Bearing |
| Castor Height (mm) | 130 |
| Swivel Radius (mm) | 90 |
| Maximum Load Capacity (kg) | 200 |
| Recommended Load Capacity (kg) | 150 |
| Download CAD Drawing (STEP file) | Download |
|---|
