Description
S4425B SWIVEL LIGHT INDUSTRIAL

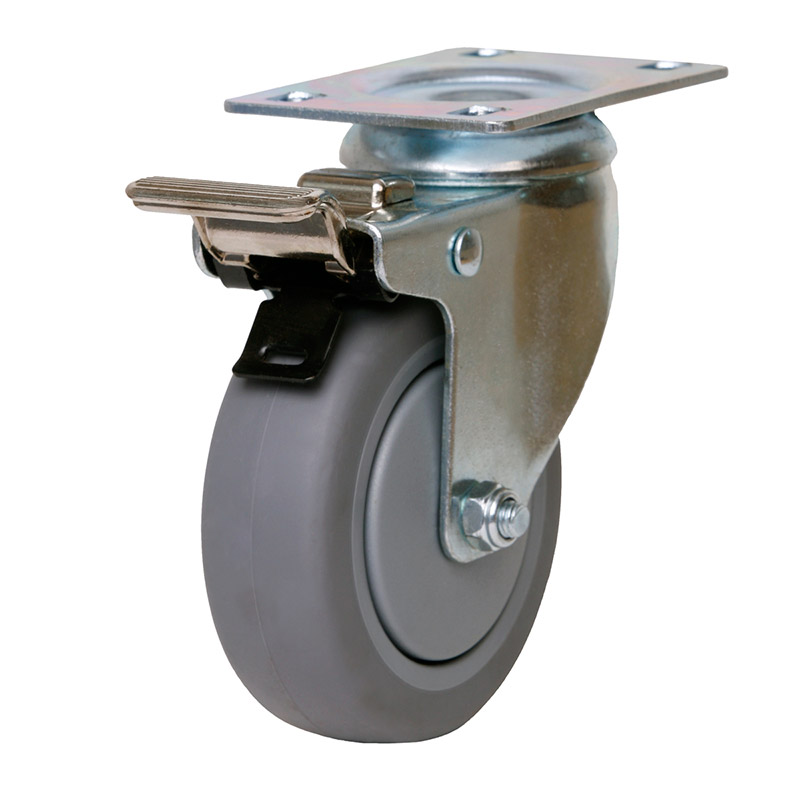

100mm Inst Rubber Wheel 80kg Capacity Castor (S4425B)
The S4425B manufactured by Richmond is a swivel frame castor and is fitted with a institutional rubber wheel. This swivel castor is one of our light industrial series range and has a maximum capacity of 100kg. The S4425B is assembled with ball bearings on the castors axle. The swivel frame design of this castor allows the load to be steered. The outside diameter of the institutional rubber wheel is 100mm, the wheel width is 32mm and can be ordered separately (iR4007). This model can also be ordered without a brake (part number S4425).
| Product Code | S4425B |
|---|---|
| Wheel Diameter (mm) | 100 |
| Frame Type | Swivel with Brake |
| Wheel Width (mm) | 32 |
| Wheel Type | Institutional Rubber |
| Wheel Bearing Type | Ball Bearing |
| Castor Height (mm) | 131 |
| Swivel Radius (mm) | 110 |
| Maximum Load Capacity (kg) | 80 |
| Download CAD Drawing (STEP file) | Download |
|---|
