Description
S4490 SWIVEL S/STEEL DUROLITE

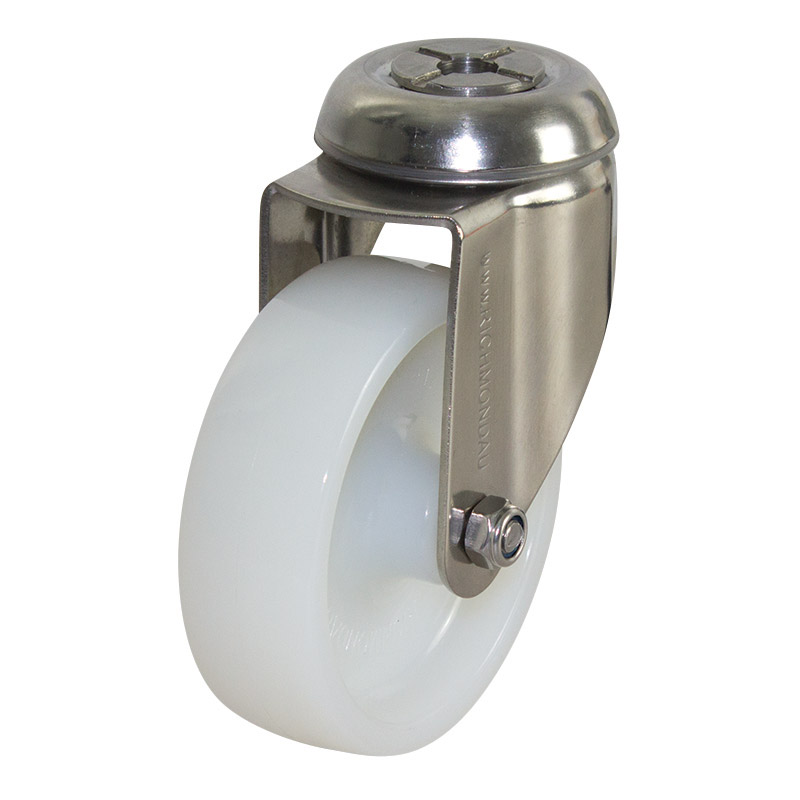

100mm Nylon Wheel 100kg Capacity Castor (S4490)
The S4490 from Richmond Wheel and Castor Co. is a swivel frame castor and uses a nylon wheel. This swivel castor is part of our stainless steel elite bolt range and can safely take loads up to 100kg. The S4490 uses plain bearings for wheel rotation and is mounted with a bolt. The swivel frame of this castor permits the load to be steered. The nylon wheel diameter is 100mm, the wheel width is 30mm and can be ordered separately (NY4417). This model can also be ordered with a brake (part number S4490B).
| Product Code | S4490 |
|---|---|
| Wheel Diameter (mm) | 100 |
| Frame Type | Swivel |
| Wheel Width (mm) | 30 |
| Wheel Type | Nylon |
| Wheel Code | NY4417 |
| Wheel Bearing Type | Plain Bore |
| Castor Height (mm) | 133 |
| Swivel Radius (mm) | 90 |
| Bolt Hole Size (mm) | 12 |
| Maximum Load Capacity (kg) | 100 |
| Recommended Load Capacity (kg) | 80 |
| Download CAD Drawing (STEP file) | Download |
|---|
