Description
S4142 SWIVEL EXCEL S/STEEL

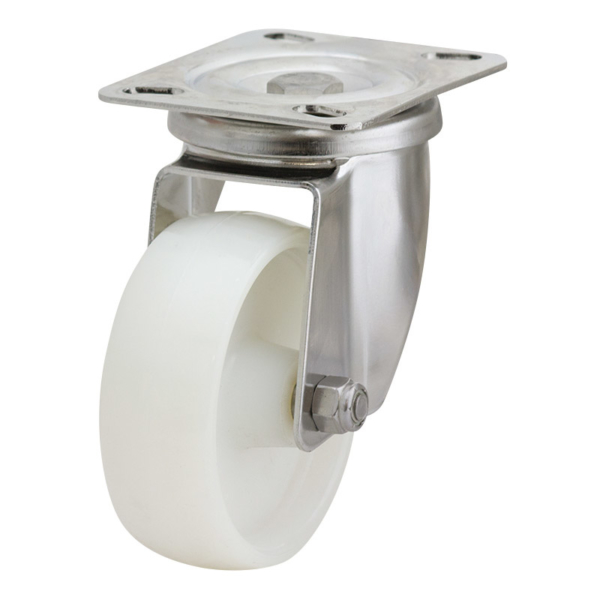

100mm Nylon Wheel 200kg Capacity Castor (S4142)
The S4142 from Richmond Wheel and Castor Co. is a swivel frame castor and uses a nylon wheel. This swivel castor is one of our stainless steel excel plate range and has a top load capacity of 200kg. The S4142 uses plain bearings for wheel rotation and is plate mount. The swivel frame of this castor allows full swivel rotation to enable steering. The diameter of the nylon wheel is 100mm, the wheel width is 35mm and you can order separately (Part Number: NY401). This model can also be ordered with a brake (part number S4142B).
| Product Code | S4142 |
|---|---|
| Wheel Diameter (mm) | 100 |
| Frame Type | Swivel |
| Wheel Width (mm) | 35 |
| Wheel Type | Nylon |
| Wheel Code | NY401 |
| Wheel Bearing Type | Plain Bore |
| Castor Height (mm) | 133 |
| Swivel Radius (mm) | 92 |
| Maximum Load Capacity (kg) | 200 |
| Recommended Load Capacity (kg) | 110 |
| Barcode / GTIN |
| Download CAD Drawing (STEP file) | Download |
|---|
