Description
S4146B BOLT HOLE EXCEL S/STEEL

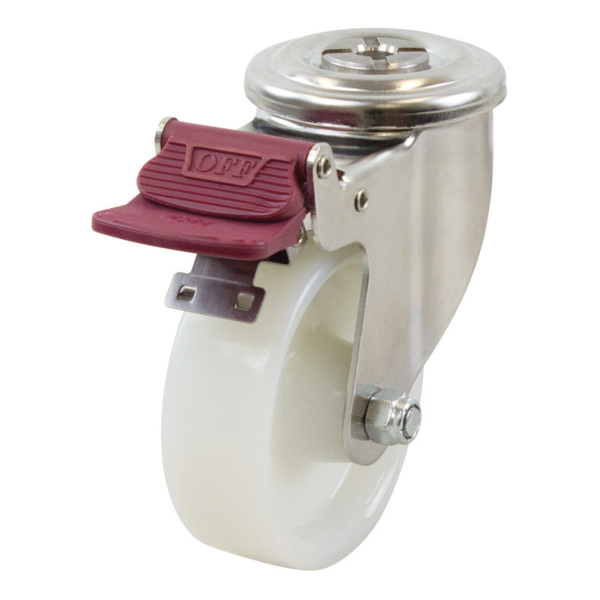

100mm Nylon Wheel 200kg Capacity Castor (S4146B)
The S4146B manufactured by Richmond Wheel and Castor Co. is a swivel frame castor and is fitted with a nylon wheel. This swivel castor is part of our stainless steel excel bolt range and can safely take loads up to 200kg. The S4146B wheel is fitted with plain bearings and is mounted with a bolt. The swivel frame allows for full 360° swivel rotation. The overall nylon wheel diameter is 100mm, the wheel width is 35mm and can be ordered separately (NY401). For the same castor without a brake, see S4146.
| Product Code | S4146B |
|---|---|
| Wheel Diameter (mm) | 100 |
| Frame Type | Swivel with Brake |
| Wheel Width (mm) | 35 |
| Wheel Type | Nylon |
| Wheel Bearing Type | Plain Bore |
| Castor Height (mm) | 130 |
| Swivel Radius (mm) | 125 |
| Bolt Hole Size (mm) | 12 |
| Maximum Load Capacity (kg) | 200 |
| Recommended Load Capacity (kg) | 150 |
| Download CAD Drawing (STEP file) | Download |
|---|
