S4034 SWIVEL 300 SERIES CASTOR

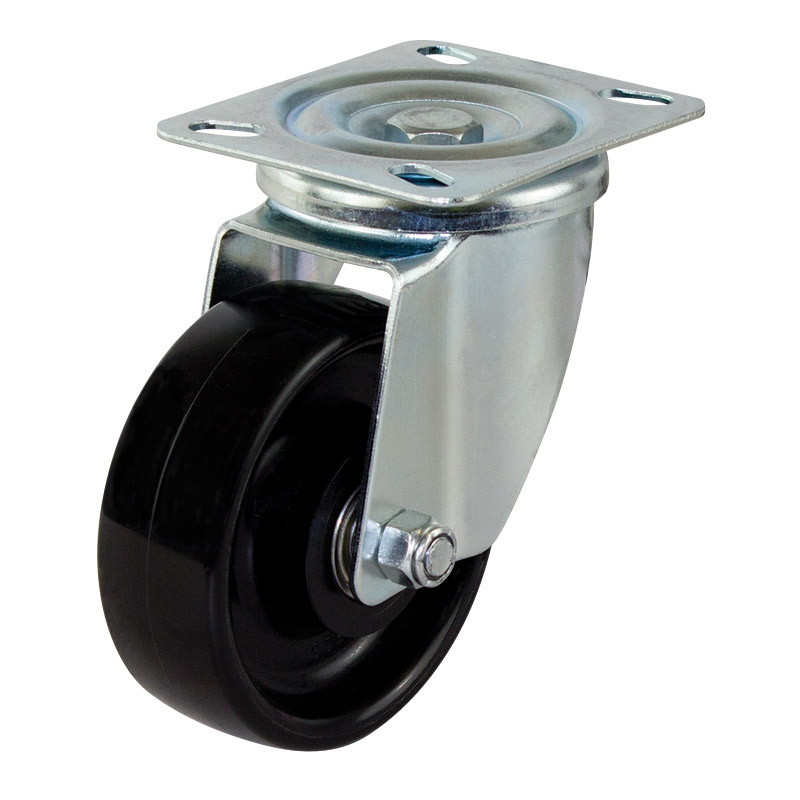

100mm Nylon Wheel 200kg Capacity Castor (S4034)
The S4034 from Richmond Wheel and Castor Co. is a swivel frame castor and uses a nylon wheel. This swivel castor is one of our 300 series plate range and can safely take loads up to 200kg. The S4034 is assembled with ball bearings on the castors axle and is baseplate mount. This castors swivel frame permits the load to be steered. The nylon wheel diameter is 100mm, the wheel width is 35mm and can be ordered separately (NY413). For the same castor with a brake, see S4034B.
| Product Code | S4034 |
|---|---|
| Wheel Diameter (mm) | 100 |
| Frame Type | Swivel |
| Wheel Width (mm) | 35 |
| Wheel Type | Nylon |
| Wheel Code | NY413 |
| Wheel Bearing Type | Ball Bearing |
| Castor Height (mm) | 130 |
| Swivel Radius (mm) | 90 |
| Maximum Load Capacity (kg) | 200 |
| Recommended Load Capacity (kg) | 150 |
| Download CAD Drawing (STEP file) | Download |
|---|
