Description
S4222 BOLT HOLE 300 SERIES

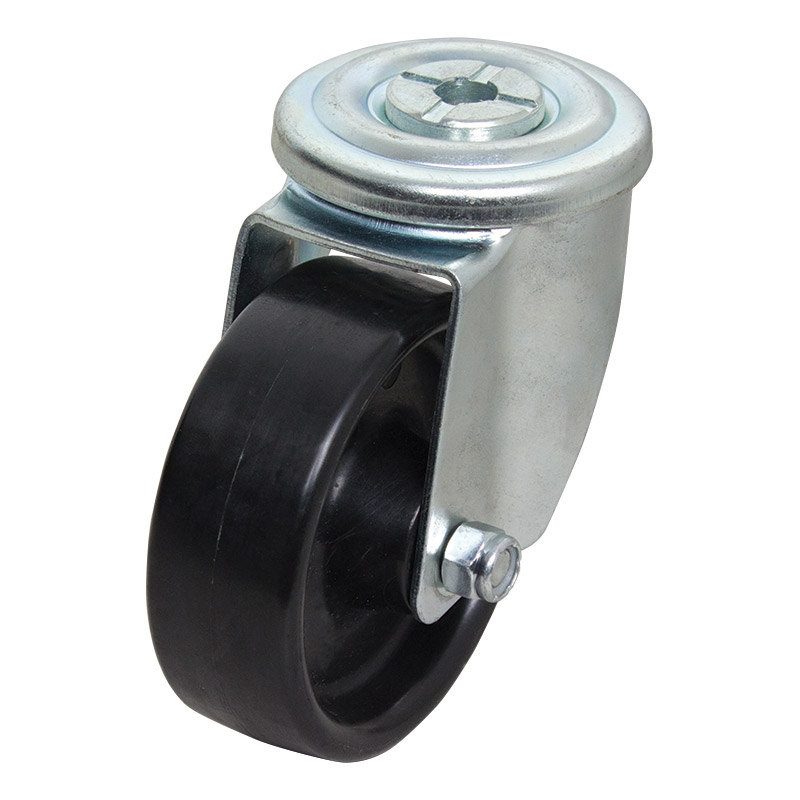

100mm Nylon Bolt Hole 300 Series Castor (S4222)
The S4222 by Richmond is a swivel frame castor and uses a nylon wheel. This swivel castor is in our 300 series bolt hole range and can hold loads up to 200kg. The S4222 wheel is fitted with plain bearings and is mounted with a bolt. The swivel frame allows the load to be steered. The nylon wheel diameter is 100mm, the wheel width is 35mm and you can order separately (Part Number: NY401). For the same castor with a brake, see S4222B.
| Product Code | S4222 |
|---|---|
| Wheel Diameter (mm) | 100 |
| Frame Type | Swivel |
| Wheel Width (mm) | 35 |
| Wheel Type | Nylon |
| Wheel Code | NY401 |
| Wheel Bearing Type | Plain Bore |
| Castor Height (mm) | 130 |
| Swivel Radius (mm) | 90 |
| Bolt Hole Size (mm) | 12 |
| Maximum Load Capacity (kg) | 200 |
| Recommended Load Capacity (kg) | 150 |
| Download CAD Drawing (STEP file) | Download |
|---|
Shipping Information
Flat rate shipping for all metropolitan and major regional locations where a Richmond Wheel & Castor warehouse is located.
Shipping will be calculated at checkout.
For more information on our freight charges, click & collect locations, and more
view our online shipping policy
*Not all items are available for purchase online.
Addon Components
Addons for your 100mm Nylon Bolt Hole 300 Series Castor (S4222). Click the product that you’re interested in for more info.
