Description
S4224 BOLT HOLE 300 SERIES

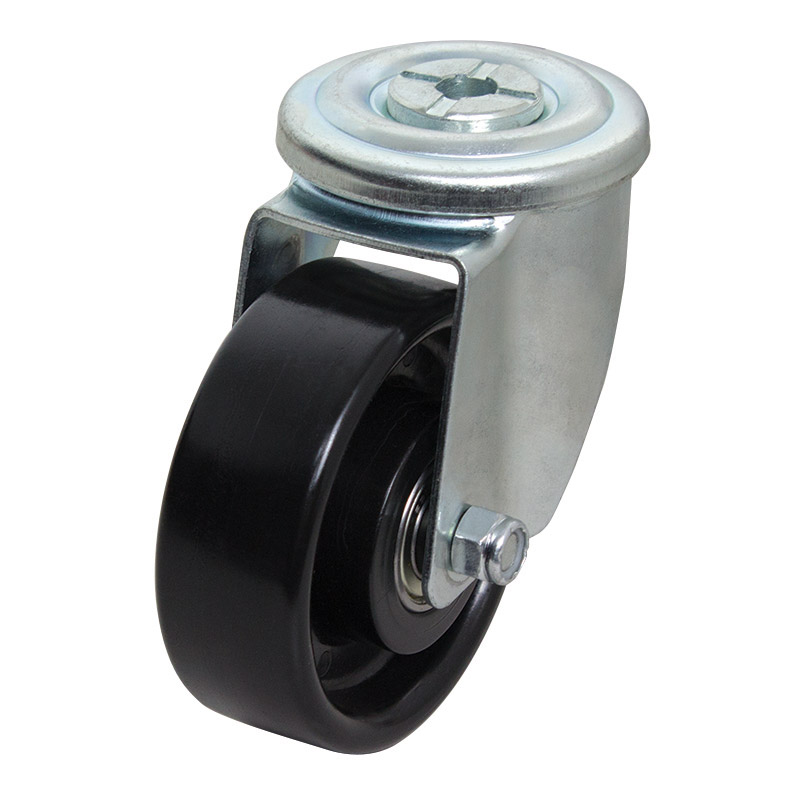

100mm Nylon Bolt Hole 300 Series Castor (S4224)
The S4224 by Richmond Wheel and Castor Co. is a swivel frame castor and has a nylon wheel. This swivel castor is one of our 300 series bolt hole range and can hold loads up to 200kg. The S4224 wheel is fitted with ball bearings and is bolt mounted. The swivel frame of this castor allows full swivel rotation to enable steering. The outside diameter of the nylon wheel is 100mm, the wheel width is 35mm and can be ordered separately (NY413). For the same castor with a brake, see S4224B.
| Product Code | S4224 |
|---|---|
| Wheel Diameter (mm) | 100 |
| Frame Type | Swivel |
| Wheel Width (mm) | 35 |
| Wheel Type | Nylon |
| Wheel Code | NY413 |
| Wheel Bearing Type | Ball Bearing |
| Castor Height (mm) | 130 |
| Swivel Radius (mm) | 90 |
| Bolt Hole Size (mm) | 12 |
| Maximum Load Capacity (kg) | 200 |
| Recommended Load Capacity (kg) | 150 |
| Download CAD Drawing (STEP file) | Download |
|---|
