Description
S4712 UTILITY BOLT HOLE

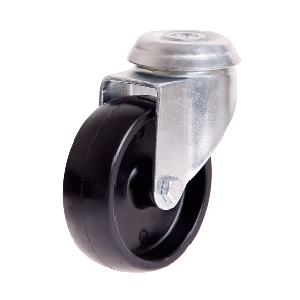

100mm Nylon Wheel 70kg Capacity Castor (S4712)
The S4712 by Richmond Wheel and Castor Co. is a swivel frame castor and is fitted with a nylon wheel. This swivel castor is part of our utility series range and has a maximum capacity of 70kg. The S4712 wheel is fitted with plain bearings. The swivel frame of this castor allows full swivel rotation to enable steering. The overall nylon wheel diameter is 100mm, the wheel width is 25mm and can be ordered separately (NY4415). To order this castor with a brake, search for S4712B.
| Product Code | S4712 |
|---|---|
| Wheel Diameter (mm) | 100 |
| Frame Type | Swivel |
| Wheel Width (mm) | 25 |
| Wheel Type | Nylon |
| Wheel Code | NY4415 |
| Wheel Bearing Type | Plain Bore |
| Castor Height (mm) | 131 |
| Swivel Radius (mm) | 90 |
| Bolt Hole Size (mm) | 10 |
| Maximum Load Capacity (kg) | 70 |
| Recommended Load Capacity (kg) | 60 |
Shipping Information
Flat rate shipping for all metropolitan and major regional locations where a Richmond Wheel & Castor warehouse is located.
Shipping will be calculated at checkout.
For more information on our freight charges, click & collect locations, and more
view our online shipping policy
*Not all items are available for purchase online.
Product FAQs
Fitting this castor to a 20mm thick base requires a 40mm x 10mm set screw.
These castors have a 10mm bolt hole but can be reduced to suit an 8mm bolt with a reduction bush (top hat). See part number 100RED1008UTI.
