Description
S4048B SWIVEL 300 SERIES CASTR
100mm Polyurethane Tyre on Cast Iron Centre Wheel 200kg Capacity Castor (S4048B)

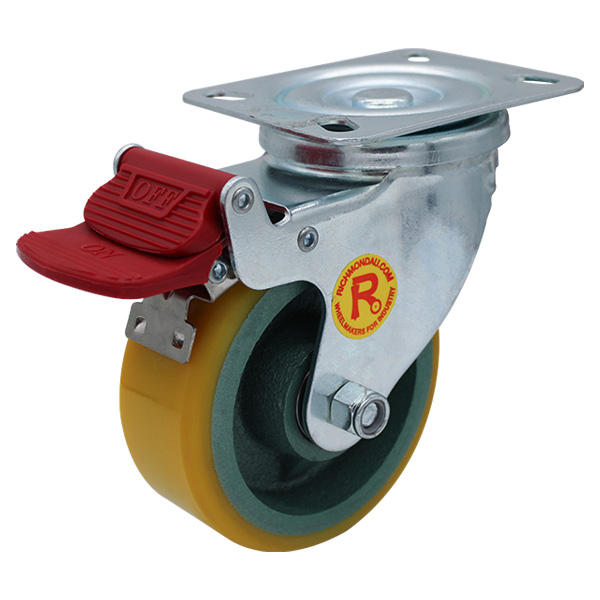

The S4048B from Richmond is a swivel frame castor and has a polyurethane tyred cast iron wheel. This swivel castor is one of our 300 series plate range and has a maximum capacity of 200kg. The S4048B is assembled with ball bearings on the castors axle and is plate mount. The swivel frame design of this castor allows full swivel rotation to enable steering. The polyurethane tyred cast iron wheel diameter is 100mm, the wheel width is 38mm and can be ordered separately (PU449). For the same castor without a brake, see S4048.
| Product Code | S4048B |
|---|---|
| Wheel Diameter (mm) | 100 |
| Frame Type | Swivel with Brake |
| Wheel Width (mm) | 38 |
| Wheel Type | Poly Cast Iron |
| Wheel Code | PU449 |
| Wheel Bearing Type | Ball Bearing |
| Castor Height (mm) | 130 |
| Swivel Radius (mm) | 125 |
| Maximum Load Capacity (kg) | 200 |
| Recommended Load Capacity (kg) | 150 |
| Download CAD Drawing (STEP file) | Download |
|---|
