Description
S4220B BOLT HOLE 300 SERIES

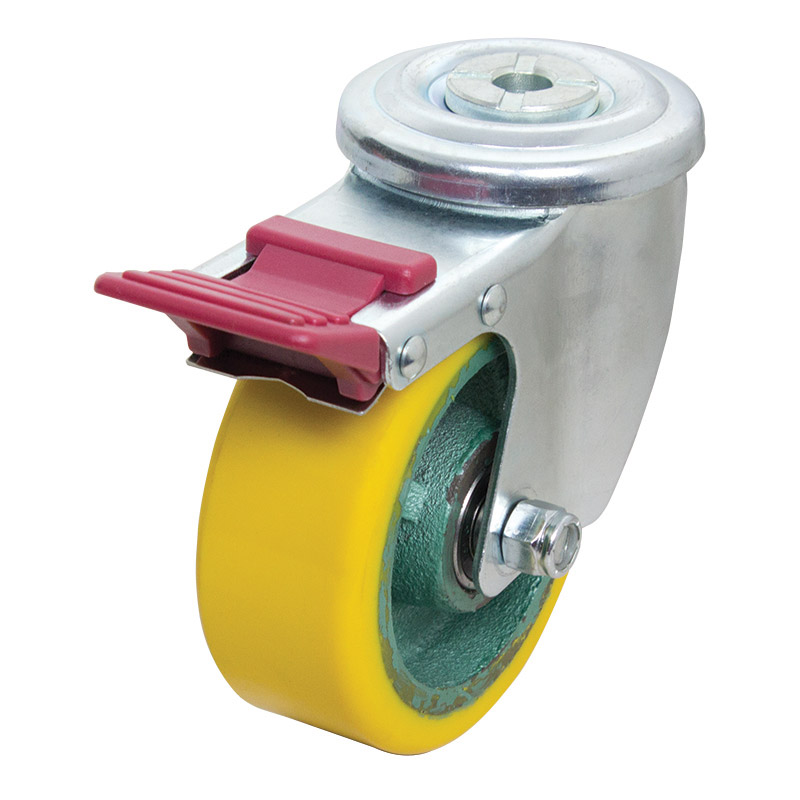

100mm Polyurethane Tyre on Cast Iron Centre Bolt Hole 300 Series Castor (S4220B)
The S4220B from Richmond is a swivel frame castor and has a polyurethane tyred cast iron wheel. This swivel castor is in our 300 series bolt hole range and has a top load capacity of 200kg. The S4220B wheel is fitted with ball bearings and is mounted with a bolt. The swivel frame of this castor allows the castor to swivel 360°. The polyurethane tyred cast iron wheel diameter is 100mm, the wheel width is 38mm and can be ordered separately (PU449). To order this castor without a brake, search for S4220.
| Product Code | S4220B |
|---|---|
| Wheel Diameter (mm) | 100 |
| Frame Type | Swivel with Brake |
| Wheel Width (mm) | 38 |
| Wheel Type | Poly Cast Iron |
| Wheel Code | PU449 |
| Wheel Bearing Type | Ball Bearing |
| Castor Height (mm) | 130 |
| Swivel Radius (mm) | 125 |
| Bolt Hole Size (mm) | 12 |
| Maximum Load Capacity (kg) | 200 |
| Recommended Load Capacity (kg) | 150 |
| Download CAD Drawing (STEP file) | Download |
|---|
