Description
S4216 BOLT HOLE 300 SERIES

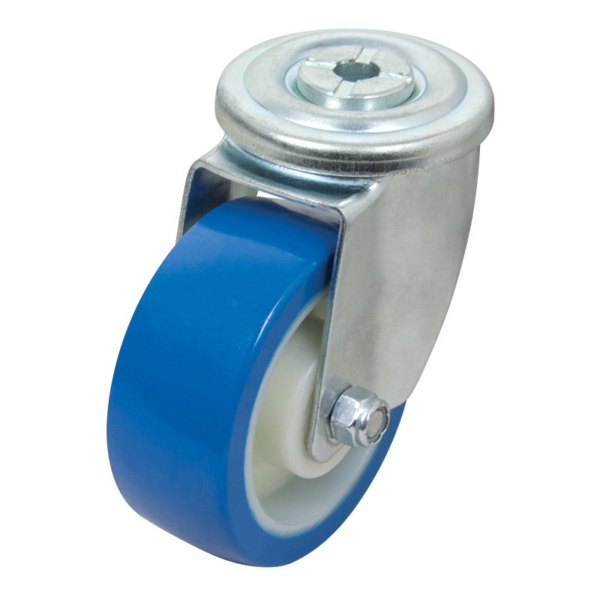

100mm Rebound Polyurethane Bolt Hole 300 Series Castor (S4216)
The S4216 from Richmond Wheel and Castor Co. is a swivel frame castor and features a rebound polyurethane wheel. This swivel castor is in our 300 series bolt hole range and has a maximum capacity of 150kg. The S4216 uses stainless steel roller bearings for wheel rotation and is bolt mounted. The swivel frame permits the load to be steered. The diameter of the rebound polyurethane wheel is 100mm, the wheel width is 35mm and you can order separately (Part Number: RP4072). This model can also be ordered with a brake (part number S4216B).
| Product Code | S4216 |
|---|---|
| Wheel Diameter (mm) | 100 |
| Frame Type | Swivel |
| Wheel Width (mm) | 35 |
| Wheel Type | Rebound Polyurethane |
| Wheel Code | RP4072 |
| Wheel Bearing Type | Stainless Roller Bearing |
| Castor Height (mm) | 130 |
| Swivel Radius (mm) | 125 |
| Bolt Hole Size (mm) | 12 |
| Maximum Load Capacity (kg) | 150 |
| Recommended Load Capacity (kg) | 110 |
| Download CAD Drawing (STEP file) | Download |
|---|
