Description
R4145 RIGID EXCEL STAINLESS

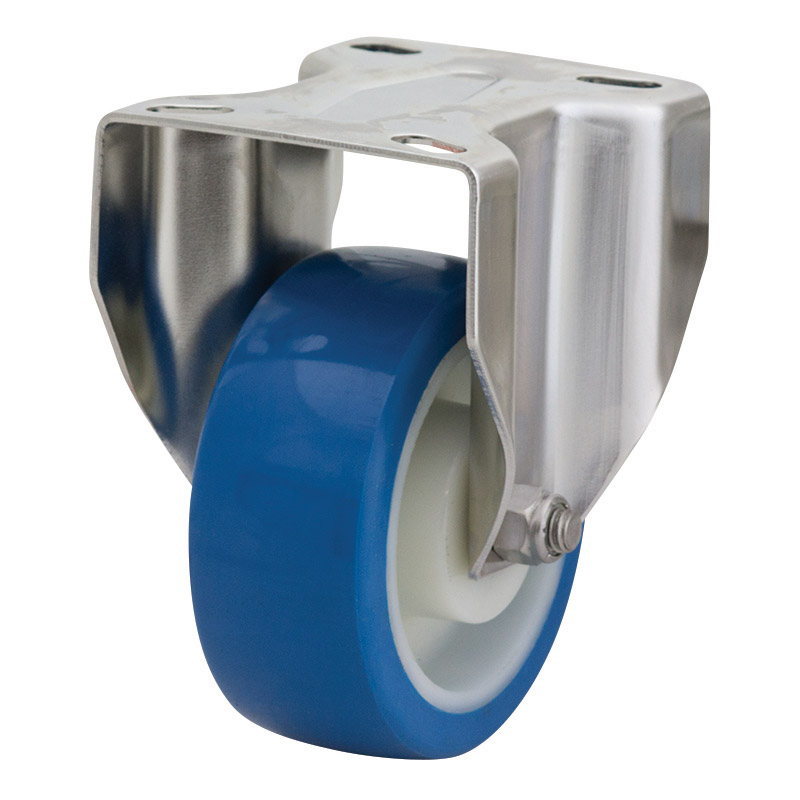

100mm Reb Poly Wheel 140kg Capacity Castor (R4145)
The R4145 by Richmond Wheel and Castor Co. is a rigid frame castor and is fitted with a rebound polyurethane wheel. This rigid castor is one of our stainless steel excel plate range and can hold loads up to 140kg. The R4145 is assembled with stainless steel roller bearings on the castors axle and is mounted with the baseplate. The rigid frame of this castor allows for linear movement and steering can be achieved by using in conjunction with swivel castors. The overall rebound polyurethane wheel diameter is 100mm, the wheel width is 35mm and you can order separately (Part Number: RP4072).
| Product Code | R4145 |
|---|---|
| Wheel Diameter (mm) | 100 |
| Frame Type | Rigid |
| Wheel Width (mm) | 35 |
| Wheel Type | Rebound Polyurethane |
| Wheel Code | RP4072 |
| Wheel Bearing Type | Stainless Roller Bearing |
| Castor Height (mm) | 133 |
| Maximum Load Capacity (kg) | 200 |
| Recommended Load Capacity (kg) | 110 |
| Barcode / GTIN |
| Download CAD Drawing (STEP file) | Download |
|---|
