Description

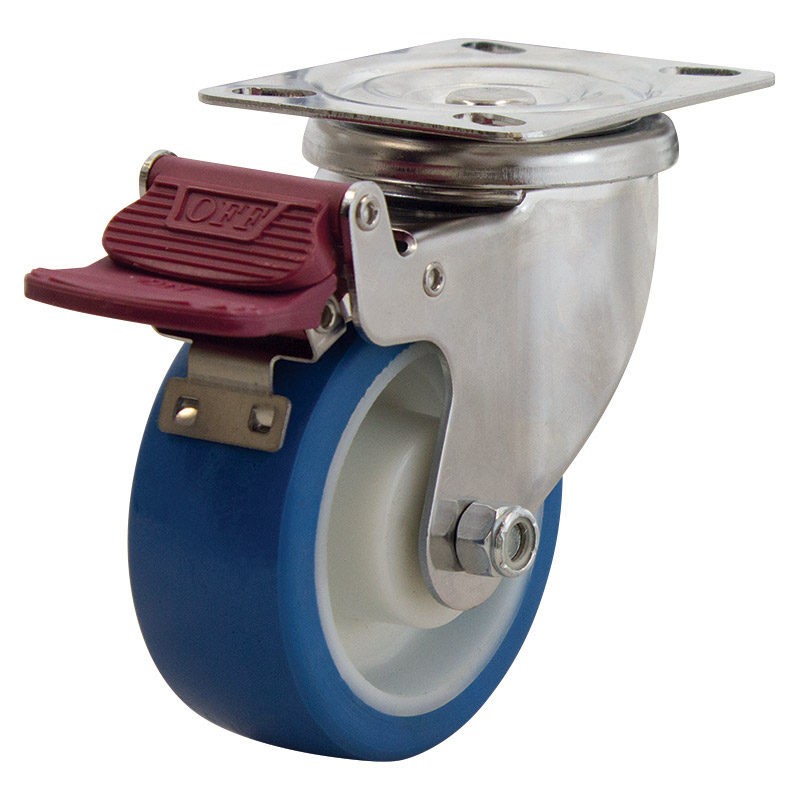

S4144B SWIVEL EXCEL S/STEEL
100mm Reb Poly Wheel 140kg Capacity Castor (S4144B)
The S4144B manufactured by Richmond is a swivel frame castor and uses a rebound polyurethane wheel. This swivel castor is in our stainless steel excel plate range and has a maximum capacity of 140kg. The S4144B wheel is fitted with stainless steel roller bearings and is baseplate mount. The swivel frame of this castor permits the load to be steered. The overall rebound polyurethane wheel diameter is 100mm, the wheel width is 35mm and you can order separately (Part Number: RP4072). To order this castor without a brake, search for S4144.
| Product Code | S4144B |
|---|---|
| Wheel Diameter (mm) | 100 |
| Frame Type | Swivel with Brake |
| Wheel Width (mm) | 35 |
| Wheel Type | Rebound Polyurethane |
| Wheel Code | RP4072 |
| Wheel Bearing Type | Stainless Roller Bearing |
| Castor Height (mm) | 133 |
| Swivel Radius (mm) | 115 |
| Maximum Load Capacity (kg) | 200 |
| Recommended Load Capacity (kg) | 110 |
| Barcode / GTIN |
| Download CAD Drawing (STEP file) | Download |
|---|
