Description
S4042 SWIVEL 300 SERIES CASTOR

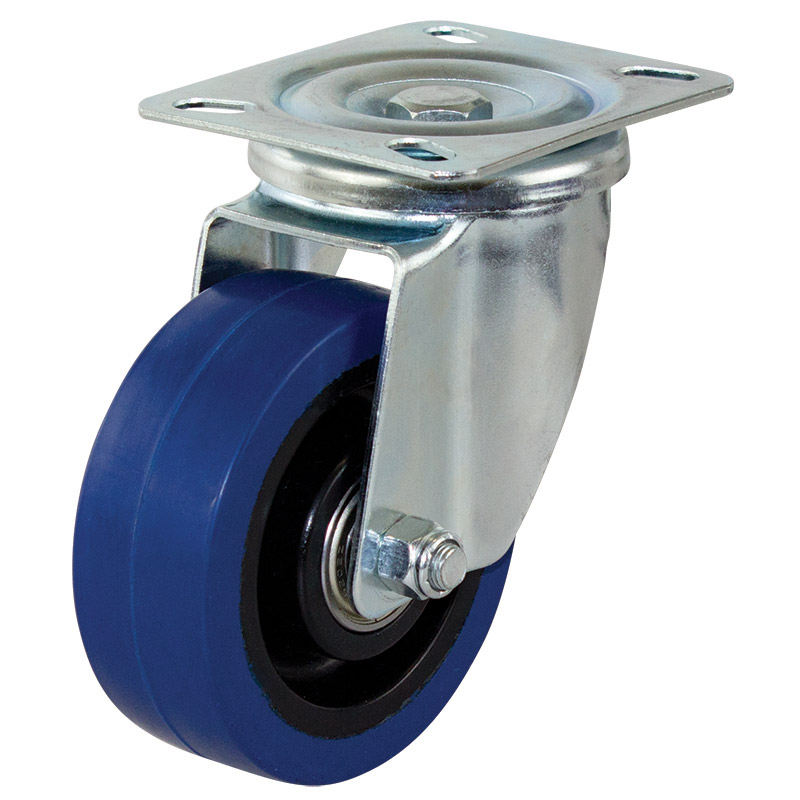

100mm Rebound Rubber Wheel 150kg Capacity Castor (S4042)
The S4042 from Richmond is a swivel frame castor and has a rebound rubber wheel. This swivel castor is part of our 300 series plate range and has a maximum capacity of 150kg. The S4042 uses ball bearings for wheel rotation and is mounted with the baseplate. The swivel frame permits the load to be steered. The diameter of the rebound rubber wheel is 100mm, the wheel width is 35mm and you can order separately (Part Number: RR4077). This model can also be ordered with a brake (part number S4042B).
| Product Code | S4042 |
|---|---|
| Wheel Diameter (mm) | 100 |
| Frame Type | Swivel |
| Wheel Width (mm) | 35 |
| Wheel Type | Rebound Rubber |
| Wheel Code | RR4077 |
| Wheel Bearing Type | Ball Bearing |
| Castor Height (mm) | 130 |
| Swivel Radius (mm) | 90 |
| Maximum Load Capacity (kg) | 150 |
| Recommended Load Capacity (kg) | 110 |
| Download CAD Drawing (STEP file) | Download |
|---|
