Description
S4214 BOLT HOLE 300 SERIES

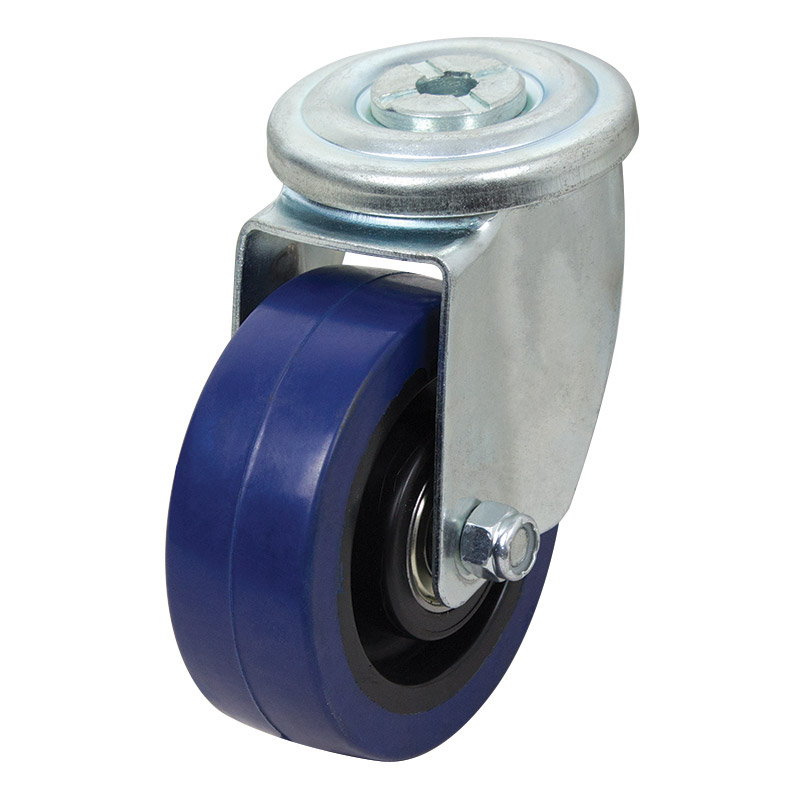

100mm Rebound Rubber Bolt Hole 300 Series Castor (S4214)
The S4214 by Richmond is a swivel frame castor and is fitted with a rebound rubber wheel. This swivel castor is one of our 300 series bolt hole range and has a maximum capacity of 150kg. The S4214 uses ball bearings for wheel rotation and is bolt mount. This castors swivel frame permits the load to be steered. The rebound rubber wheel diameter is 100mm, the wheel width is 35mm and can be ordered separately (RR4077). For the same castor with a brake, see S4214B.
| Product Code | S4214 |
|---|---|
| Wheel Diameter (mm) | 100 |
| Frame Type | Swivel |
| Wheel Width (mm) | 35 |
| Wheel Type | Rebound Rubber |
| Wheel Code | RR4077 |
| Wheel Bearing Type | Ball Bearing |
| Castor Height (mm) | 130 |
| Swivel Radius (mm) | 90 |
| Bolt Hole Size (mm) | 12 |
| Maximum Load Capacity (kg) | 150 |
| Recommended Load Capacity (kg) | 110 |
| Download CAD Drawing (STEP file) | Download |
|---|
