Description
S4214B BOLT HOLE 300 SERIES

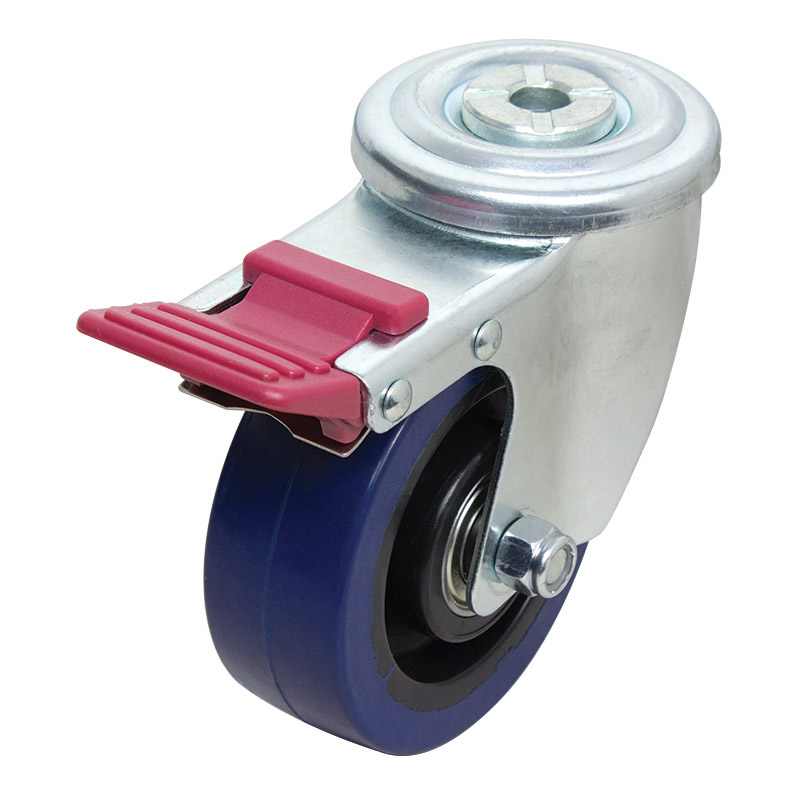

100mm Rebound Rubber Bolt Hole 300 Series Castor (S4214B)
The S4214B by Richmond is a swivel frame castor and has a rebound rubber wheel. This swivel castor is part of our 300 series bolt hole range and has a maximum capacity of 150kg. The S4214B wheel is fitted with ball bearings and is bolt mount. The swivel frame of this castor allows the load to be steered. The outside diameter of the rebound rubber wheel is 100mm, the wheel width is 35mm and you can order separately (Part Number: RR4077). To order this castor without a brake, search for S4214.
| Product Code | S4214B |
|---|---|
| Wheel Diameter (mm) | 100 |
| Frame Type | Swivel with Brake |
| Wheel Width (mm) | 35 |
| Wheel Type | Rebound Rubber |
| Wheel Code | RR4077 |
| Wheel Bearing Type | Ball Bearing |
| Castor Height (mm) | 130 |
| Swivel Radius (mm) | 90 |
| Bolt Hole Size (mm) | 12 |
| Maximum Load Capacity (kg) | 150 |
| Recommended Load Capacity (kg) | 110 |
| Download CAD Drawing (STEP file) | Download |
|---|
