Description

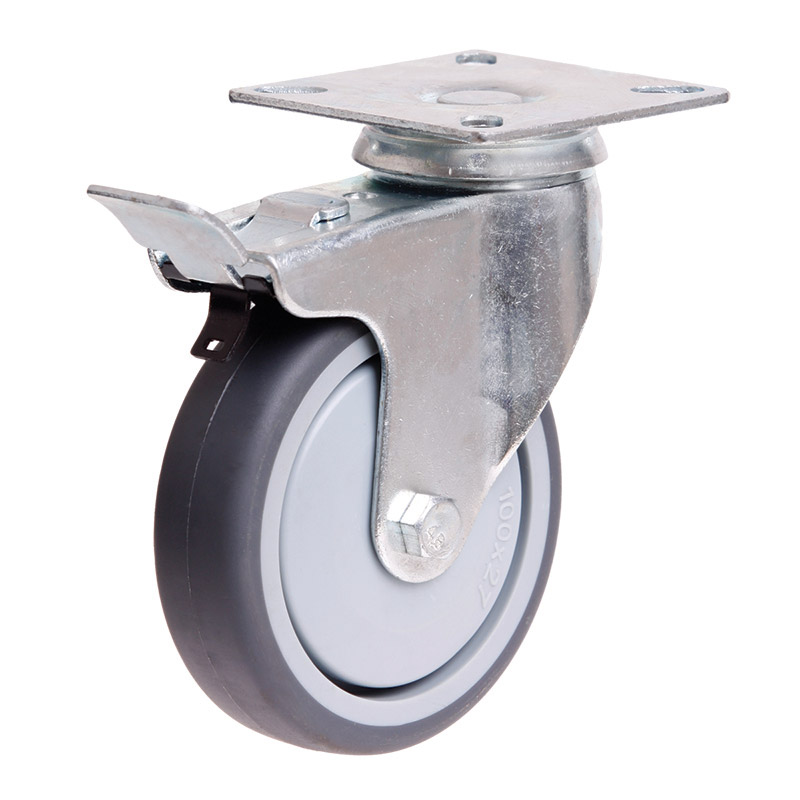

S4710B SWIVEL UTILITY PLATE
100mm Rubber Wheel 70kg Capacity Castor (S4710B)
The S4710B from Richmond is a swivel frame castor and is fitted with a institutional rubber wheel. This swivel castor is part of our utility series range and can hold loads up to 70kg. The S4710B uses ball bearings for wheel rotation. This castors swivel frame allows full swivel rotation to enable steering. The diameter of the institutional rubber wheel is 100mm, the wheel width is 25mm and can be ordered separately (IR4401). For the same castor without a brake, see S4710.
| Product Code | S4710B |
|---|---|
| Wheel Diameter (mm) | 100 |
| Frame Type | Swivel with Brake |
| Wheel Width (mm) | 25 |
| Wheel Type | Institutional Rubber |
| Wheel Code | IR4401 |
| Wheel Bearing Type | Ball Bearing |
| Castor Height (mm) | 134 |
| Swivel Radius (mm) | 100 |
| Maximum Load Capacity (kg) | 70 |
| Recommended Load Capacity (kg) | 60 |
| Barcode / GTIN |
