Description
S4714B UTILITY BOLT HOLE

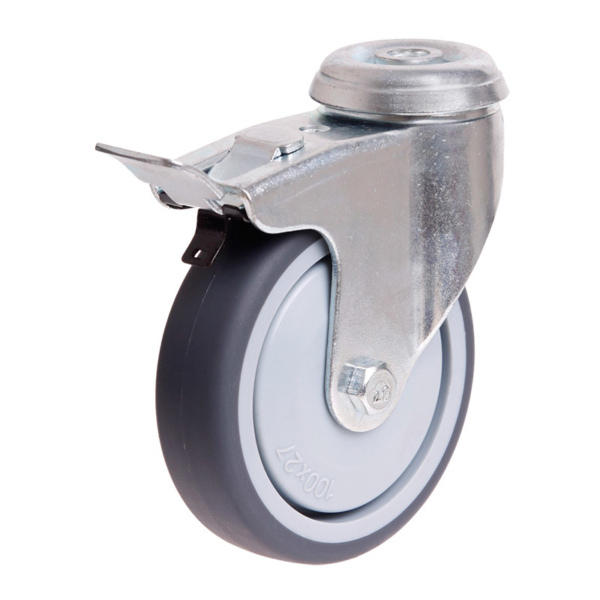

100mm Rubber Wheel 70kg Capacity Castor (S4714B)
The S4714B manufactured by Richmond Wheel and Castor Co. is a swivel frame castor and features a institutional rubber wheel. This swivel castor is one of our utility series range and can hold loads up to 70kg. The S4714B uses ball bearings for wheel rotation. The swivel frame of this castor allows full swivel rotation to enable steering. The outside diameter of the institutional rubber wheel is 100mm, the wheel width is 25mm and you can order separately (Part Number: iR4401). To order this castor without a brake, search for S4714.
| Product Code | S4714B |
|---|---|
| Wheel Diameter (mm) | 100 |
| Frame Type | Swivel with Brake |
| Wheel Width (mm) | 25 |
| Wheel Type | Institutional Rubber |
| Wheel Code | IR4401 |
| Wheel Bearing Type | Ball Bearing |
| Castor Height (mm) | 131 |
| Swivel Radius (mm) | 100 |
| Bolt Hole Size (mm) | 10 |
| Maximum Load Capacity (kg) | 70 |
| Recommended Load Capacity (kg) | 60 |
Shipping Information
Flat rate shipping for all metropolitan and major regional locations where a Richmond Wheel & Castor warehouse is located.
Shipping will be calculated at checkout.
For more information on our freight charges, click & collect locations, and more
view our online shipping policy
*Not all items are available for purchase online.
Product FAQs
Fitting this castor to a 20mm thick base requires a 40mm x 10mm set screw.
These castors have a 10mm bolt hole but can be reduced to suit an 8mm bolt with a reduction bush (top hat). See part number 100RED1008UTI.
Addon Components
Addons for your 100mm Rubber Wheel 70kg Capacity Castor (S4714B). Click the product that you’re interested in for more info.
