Description
S5142 SWIVEL EXCEL S/STEEL

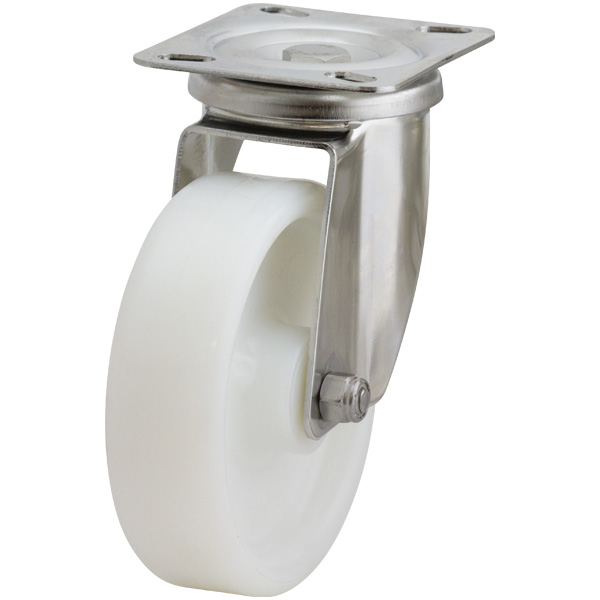

125mm Nylon Wheel 200kg Capacity Castor (S5142)
The S5142 from Richmond Wheel and Castor Co. is a swivel frame castor and uses a nylon wheel. This swivel castor is one of our stainless steel excel plate range and can hold loads up to 200kg. The S5142 is assembled with plain bearings on the castors axle and is mounted with the baseplate. The swivel frame of this castor allows the castor to swivel 360°. The nylon wheel diameter is 125mm, the wheel width is 35mm and you can order separately (Part Number: NY501). This model can also be ordered with a brake (part number S5142B).
| Product Code | S5142 |
|---|---|
| Wheel Diameter (mm) | 125 |
| Frame Type | Swivel |
| Wheel Width (mm) | 35 |
| Wheel Type | Nylon |
| Wheel Code | NY501 |
| Wheel Bearing Type | Plain Bore |
| Castor Height (mm) | 158 |
| Swivel Radius (mm) | 120 |
| Maximum Load Capacity (kg) | 200 |
| Recommended Load Capacity (kg) | 110 |
| Barcode / GTIN |
| Download CAD Drawing (STEP file) | Download |
|---|
