R5035 RIGID 300 SERIES CASTOR

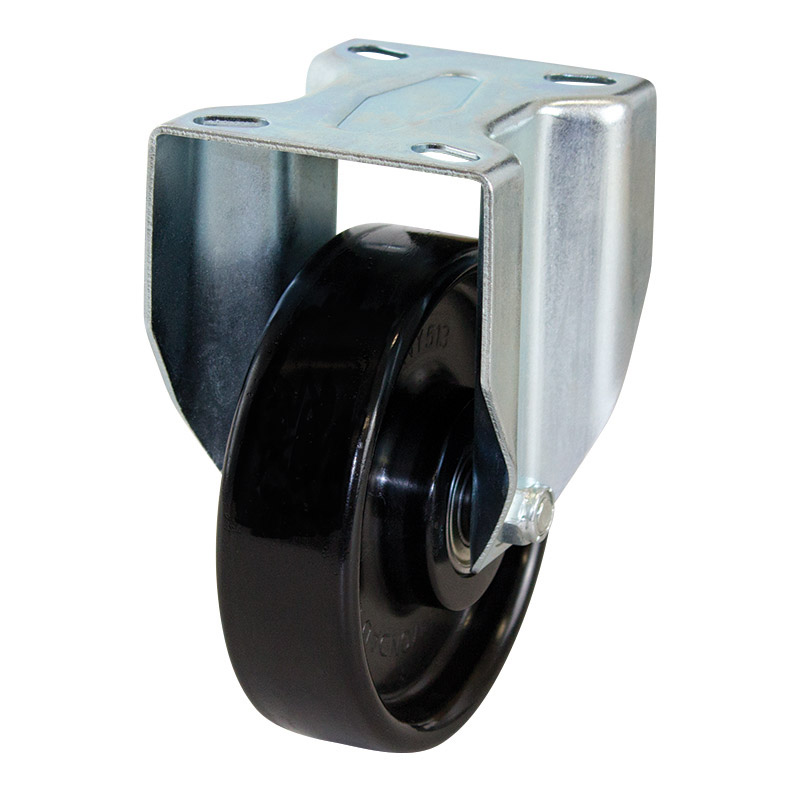

125mm Nylon Wheel 200kg Capacity Castor (R5035)
The R5035 by Richmond Wheel and Castor Co. is a rigid frame castor and has a nylon wheel. This rigid castor is one of our 300 series plate range and can hold loads up to 200kg. The R5035 uses ball bearings for wheel rotation and is mounted with the baseplate. The rigid frame of this castor allows for linear movement and steering can be achieved by using in conjunction with swivel castors. The diameter of the nylon wheel is 125mm, the wheel width is 35mm and can be ordered separately (NY513).
| Product Code | R5035 |
|---|---|
| Wheel Diameter (mm) | 125 |
| Frame Type | Rigid |
| Wheel Width (mm) | 35 |
| Wheel Type | Nylon |
| Wheel Code | NY513 |
| Wheel Bearing Type | Ball Bearing |
| Castor Height (mm) | 157 |
| Maximum Load Capacity (kg) | 200 |
| Recommended Load Capacity (kg) | 150 |
| Download CAD Drawing (STEP file) | Download |
|---|
