Description
S5222 BOLT HOLE 300 SERIES
125mm Nylon Bolt Hole 300 Series Castor (S5222)

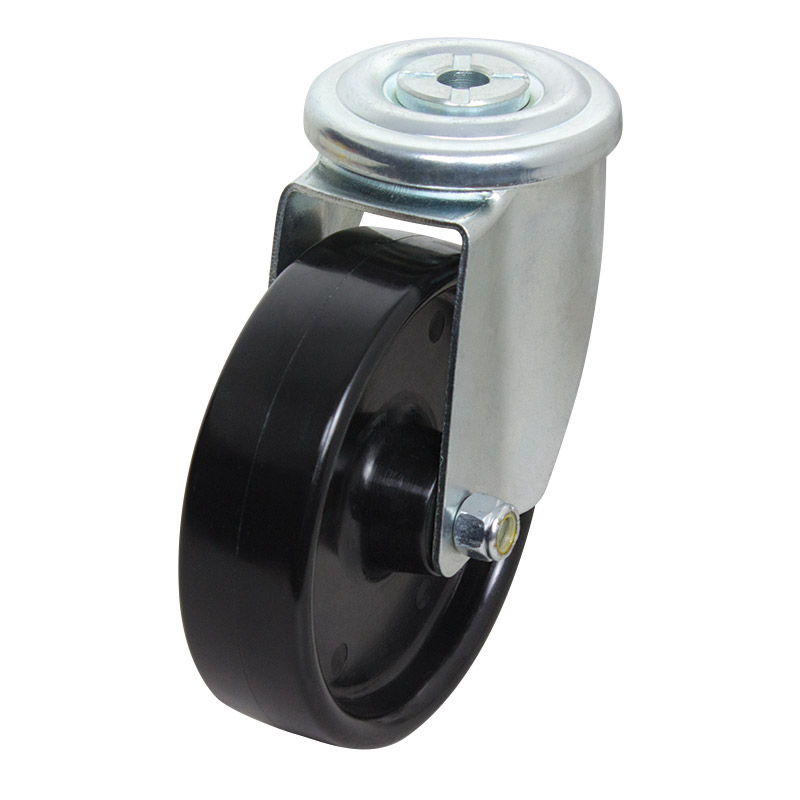

The S5222 manufactured by Richmond is a swivel frame castor and is fitted with a nylon wheel. This swivel castor is in our 300 series bolt hole range and can hold loads up to 200kg. The S5222 uses plain bearings for wheel rotation and is bolt mount. The swivel frame design of this castor allows the castor to swivel 360°. The outside diameter of the nylon wheel is 125mm, the wheel width is 35mm and you can order separately (Part Number: NY501). For the same castor with a brake, see S5222B.
| Product Code | S5222 |
|---|---|
| Wheel Diameter (mm) | 125 |
| Frame Type | Swivel |
| Wheel Width (mm) | 35 |
| Wheel Type | Nylon |
| Wheel Code | NY501 |
| Wheel Bearing Type | Plain Bore |
| Castor Height (mm) | 157 |
| Swivel Radius (mm) | 112 |
| Bolt Hole Size (mm) | 12 |
| Maximum Load Capacity (kg) | 200 |
| Recommended Load Capacity (kg) | 150 |
| Download CAD Drawing (STEP file) | Download |
|---|
