Description
S5222B BOLT HOLE 300 SERIES

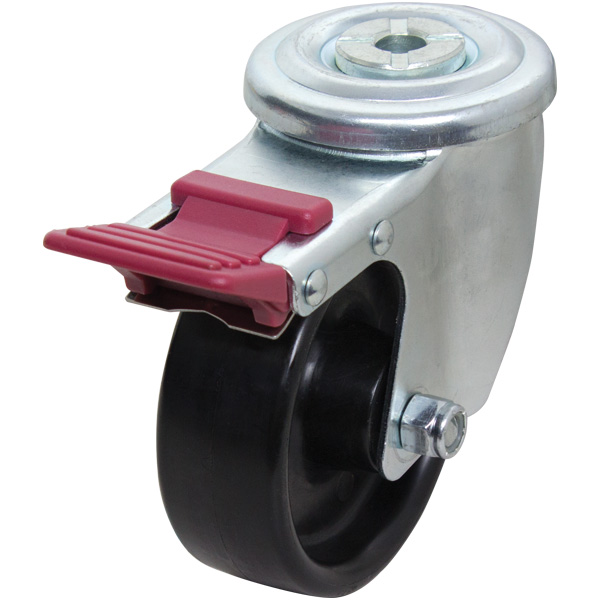

125mm Nylon Bolt Hole 300 Series Castor (S5222B)

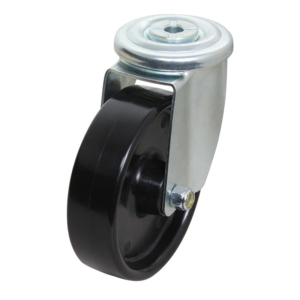

The S5222B from Richmond is a swivel frame castor and uses a nylon wheel. This swivel castor is part of our 300 series bolt hole range and has a maximum capacity of 200kg. The S5222B is assembled with plain bearings on the castors axle and is mounted with a bolt. The swivel frame allows the castor to swivel 360°. The outside diameter of the nylon wheel is 125mm, the wheel width is 35mm and you can order separately (Part Number: NY501). For the same castor without a brake, see S5222.
| Product Code | S5222B |
|---|---|
| Wheel Diameter (mm) | 125 |
| Frame Type | Swivel with Brake |
| Wheel Width (mm) | 35 |
| Wheel Type | Nylon |
| Wheel Code | NY501 |
| Wheel Bearing Type | Plain Bore |
| Castor Height (mm) | 157 |
| Swivel Radius (mm) | 125 |
| Bolt Hole Size (mm) | 12 |
| Maximum Load Capacity (kg) | 200 |
| Recommended Load Capacity (kg) | 150 |
| Download CAD Drawing (STEP file) | Download |
|---|
