S5224 BOLT HOLE 300 SERIES

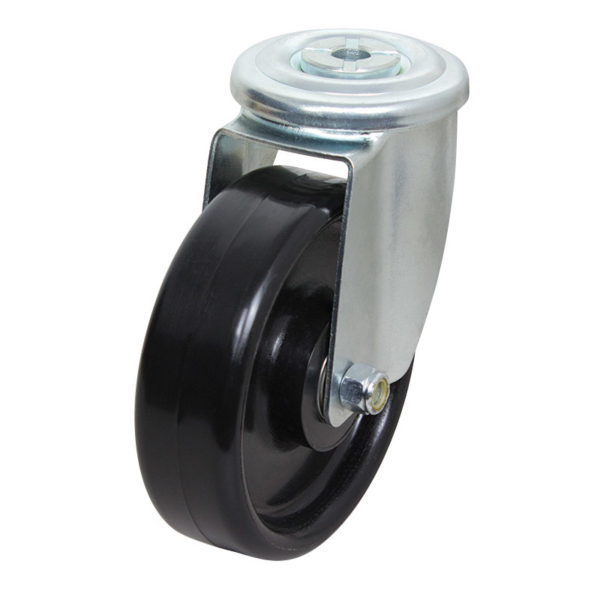

125mm Nylon Bolt Hole 300 Series Castor (S5224)
The S5224 from Richmond is a swivel frame castor and has a nylon wheel. This swivel castor is part of our 300 series bolt hole range and can hold loads up to 200kg. The S5224 uses ball bearings for wheel rotation and is bolt mount. The swivel frame of this castor allows the load to be steered. The outside diameter of the nylon wheel is 125mm, the wheel width is 35mm and can be ordered separately (NY513). For the same castor with a brake, see S5224B.
| Product Code | S5224 |
|---|---|
| Wheel Diameter (mm) | 125 |
| Frame Type | Swivel |
| Wheel Width (mm) | 35 |
| Wheel Type | Nylon |
| Wheel Code | NY513 |
| Wheel Bearing Type | Ball Bearing |
| Castor Height (mm) | 157 |
| Swivel Radius (mm) | 112 |
| Bolt Hole Size (mm) | 12 |
| Maximum Load Capacity (kg) | 200 |
| Recommended Load Capacity (kg) | 150 |
| Download CAD Drawing (STEP file) | Download |
|---|
