S5048B SWIVEL 300 SERIES CASTR

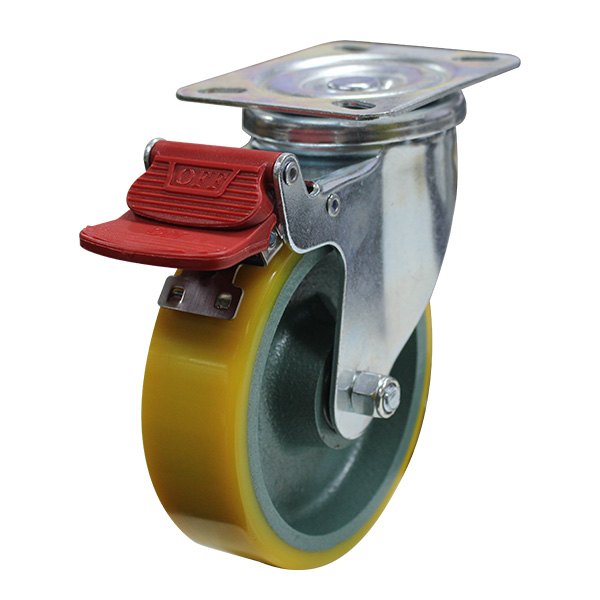

125mm Polyurethane Tyre on Cast Iron Centre Wheel 200kg Capacity Castor (S5048B)
The S5048B by Richmond is a swivel frame castor and features a polyurethane tyred cast iron wheel. This swivel castor is part of our 300 series plate range and can hold loads up to 200kg. The S5048B is assembled with ball bearings on the castors axle and is mounted with the baseplate. The swivel frame permits the load to be steered. The overall polyurethane tyred cast iron wheel diameter is 125mm, the wheel width is 35mm and you can order separately (Part Number: PU549). For the same castor without a brake, see S5048.
| Product Code | S5048B |
|---|---|
| Wheel Diameter (mm) | 125 |
| Frame Type | Swivel with Brake |
| Wheel Width (mm) | 35 |
| Wheel Type | Poly Cast Iron |
| Wheel Code | PU549 |
| Wheel Bearing Type | Ball Bearing |
| Castor Height (mm) | 157 |
| Swivel Radius (mm) | 125 |
| Maximum Load Capacity (kg) | 200 |
| Recommended Load Capacity (kg) | 150 |
| Download CAD Drawing (STEP file) | Download |
|---|
