Description
S5220 BOLT HOLE 300 SERIES

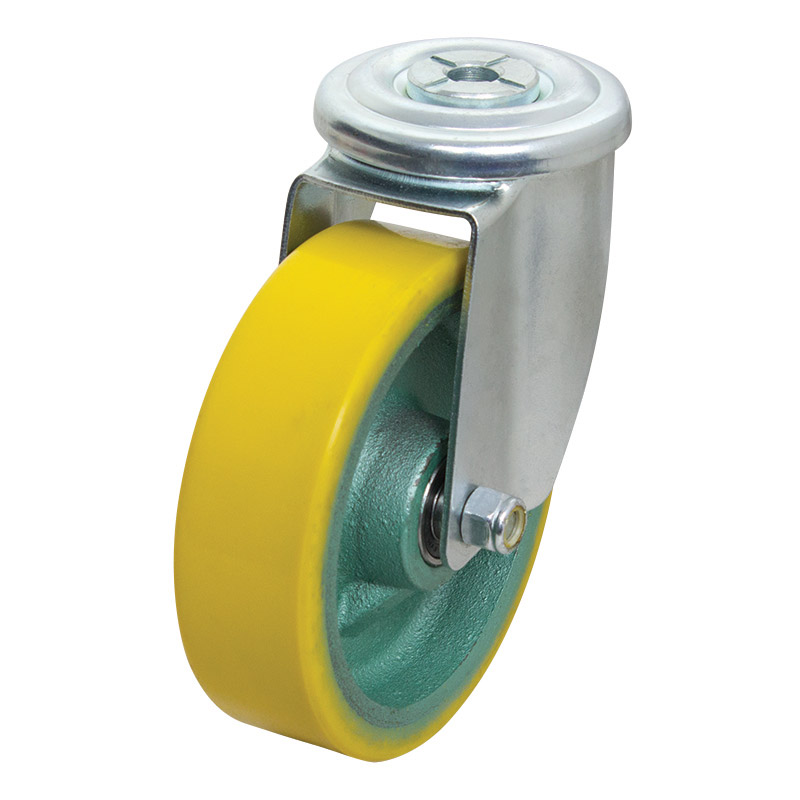

125mm Polyurethane Tyre on Cast Iron Centre Bolt Hole 300 Series Castor (S5220)
The S5220 from Richmond is a swivel frame castor and uses a polyurethane tyred cast iron wheel. This swivel castor is one of our 300 series bolt hole range and has a top load capacity of 200kg. The S5220 wheel is fitted with ball bearings and is mounted with a bolt. The swivel frame of this castor allows the load to be steered. The polyurethane tyred cast iron wheel diameter is 125mm, the wheel width is 35mm and can be ordered separately (PU549). For the same castor with a brake, see S5220B.
| Product Code | S5220 |
|---|---|
| Wheel Diameter (mm) | 125 |
| Frame Type | Swivel |
| Wheel Width (mm) | 35 |
| Wheel Type | Poly Cast Iron |
| Wheel Code | PU549 |
| Wheel Bearing Type | Ball Bearing |
| Castor Height (mm) | 157 |
| Swivel Radius (mm) | 112 |
| Bolt Hole Size (mm) | 12 |
| Maximum Load Capacity (kg) | 200 |
| Recommended Load Capacity (kg) | 150 |
| Download CAD Drawing (STEP file) | Download |
|---|
