Description
S5220B BOLT HOLE 300 SERIES

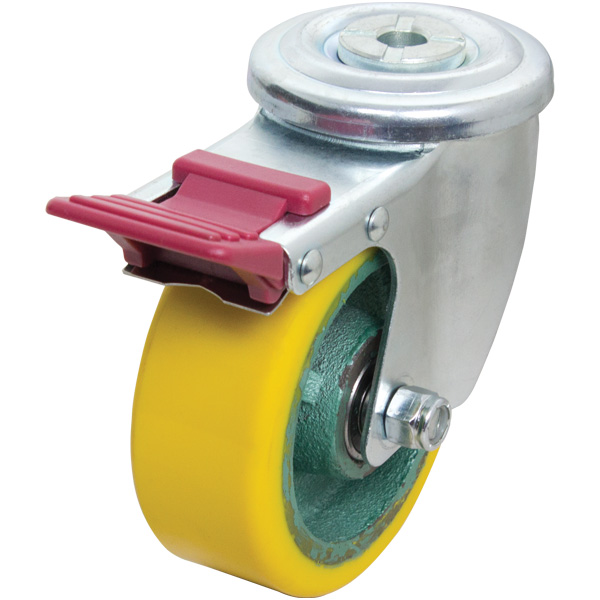

125mm Polyurethane Tyre on Cast Iron Centre Bolt Hole 300 Series Castor (S5220B)
The S5220B manufactured by Richmond is a swivel frame castor and uses a polyurethane tyred cast iron wheel. This swivel castor is one of our 300 series bolt hole range and can safely take loads up to 200kg. The S5220B is assembled with ball bearings on the castors axle and is mounted with a bolt. This castors swivel frame permits the load to be steered. The polyurethane tyred cast iron wheel diameter is 125mm, the wheel width is 35mm and you can order separately (Part Number: PU549). This model can also be ordered without a brake (part number S5220).
| Product Code | S5220B |
|---|---|
| Wheel Diameter (mm) | 125 |
| Frame Type | Swivel with Brake |
| Wheel Width (mm) | 35 |
| Wheel Type | Poly Cast Iron |
| Wheel Code | PU549 |
| Wheel Bearing Type | Ball Bearing |
| Castor Height (mm) | 157 |
| Swivel Radius (mm) | 125 |
| Bolt Hole Size (mm) | 12 |
| Maximum Load Capacity (kg) | 200 |
| Recommended Load Capacity (kg) | 150 |
| Download CAD Drawing (STEP file) | Download |
|---|
