Description
S5578B SWIVEL S/STEEL DUROLITE

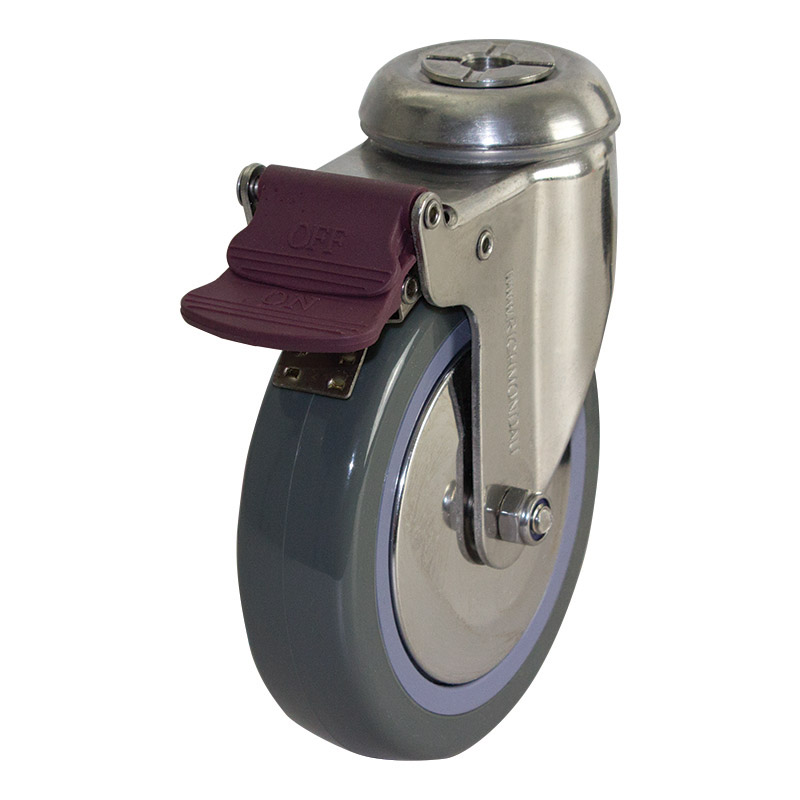

125mm Poly Nylon Wheel 100kg Capacity Castor (S5578B)
The S5578B from Richmond is a swivel frame castor and features a polyurethane wheel. This swivel castor is in our stainless steel elite bolt range and has a maximum capacity of 100kg. The S5578B is assembled with stainless steel ball bearings on the castors axle and is mounted with a bolt. The swivel frame of this castor allows for full 360° swivel rotation. The polyurethane wheel diameter is 125mm, the wheel width is 27mm and can be ordered separately (PU5539). This model can also be ordered without a brake (part number S5578).
| Product Code | S5578B |
|---|---|
| Wheel Diameter (mm) | 125 |
| Frame Type | Swivel with Brake |
| Wheel Width (mm) | 27 |
| Wheel Type | Polyurethane Tyred Nylon Centred |
| Wheel Code | PU5539 |
| Wheel Bearing Type | Stainless Ball Bearing |
| Castor Height (mm) | 159 |
| Swivel Radius (mm) | 106 |
| Bolt Hole Size (mm) | 12 |
| Maximum Load Capacity (kg) | 100 |
| Recommended Load Capacity (kg) | 80 |
| Download CAD Drawing (STEP file) | Download |
|---|
