Description
S5042B SWIVEL 300 SERIES CASTR

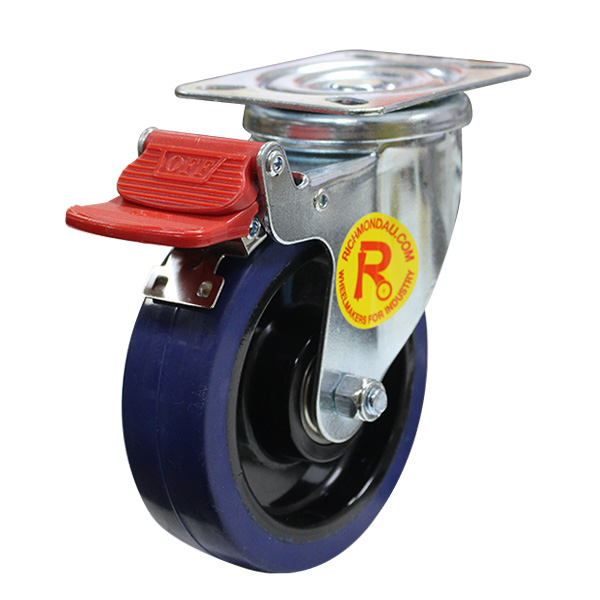

125mm Rebound Rubber Wheel 200kg Capacity Castor (S5042B)
The S5042B by Richmond Wheel and Castor Co. is a swivel frame castor and uses a rebound rubber wheel. This swivel castor is in our 300 series plate range and has a maximum capacity of 200kg. The S5042B is assembled with ball bearings on the castors axle and is plate mount. This castors swivel frame permits the load to be steered. The overall rebound rubber wheel diameter is 125mm, the wheel width is 35mm and you can order separately (Part Number: RR5077). For the same castor without a brake, see S5042.
| Product Code | S5042B |
|---|---|
| Wheel Diameter (mm) | 125 |
| Frame Type | Swivel with Brake |
| Wheel Width (mm) | 35 |
| Wheel Type | Rebound Rubber |
| Wheel Code | RR55077 |
| Wheel Bearing Type | Ball Bearing |
| Castor Height (mm) | 157 |
| Swivel Radius (mm) | 125 |
| Maximum Load Capacity (kg) | 200 |
| Recommended Load Capacity (kg) | 150 |
| Download CAD Drawing (STEP file) | Download |
|---|
