Description
S6050 SWIVEL 300 SERIES CASTOR

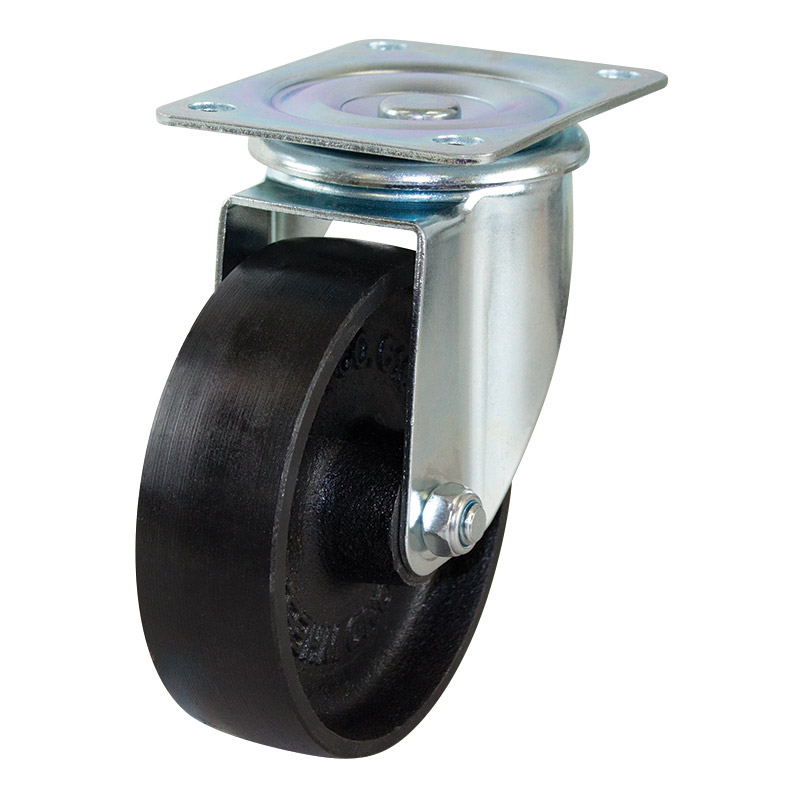

150mm Cast Iron Wheel 300kg Capacity Castor (S6050)
The S6050 from Richmond is a swivel frame castor and uses a cast iron wheel. This swivel castor is part of our 300 series plate range and can safely take loads up to 300kg. The S6050 is assembled with plain bearings on the castors axle and is mounted with the baseplate. The swivel frame of this castor allows the castor to swivel 360°. The cast iron wheel diameter is 150mm, the wheel width is 45mm and can be ordered separately (Ci611).
| Product Code | S6050 |
|---|---|
| Wheel Diameter (mm) | 150 |
| Frame Type | Swivel |
| Wheel Width (mm) | 45 |
| Wheel Type | Cast Iron |
| Wheel Code | Ci611 |
| Wheel Bearing Type | Plain Bore |
| Castor Height (mm) | 187 |
| Swivel Radius (mm) | 112 |
| Maximum Load Capacity (kg) | 300 |
| Recommended Load Capacity (kg) | 225 |
| Temperature range (°C) | -30° to 300° |
