S6240 SWIVEL 500 SERIES CASTOR

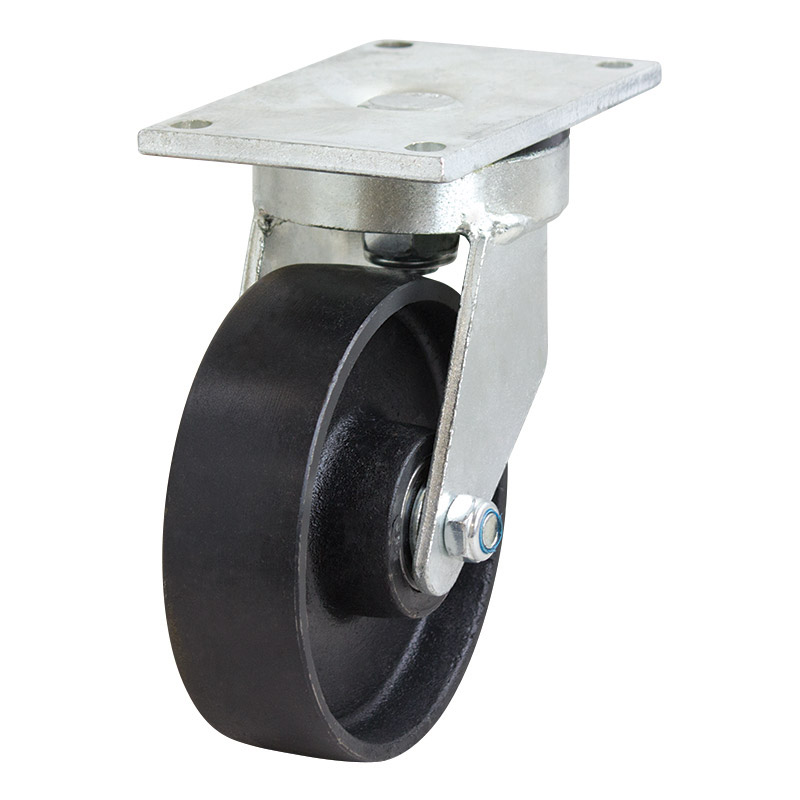

150mm Cast Iron Wheel 500kg Capacity Castor (S6240)
The S6240 from Richmond Wheel and Castor Co. is a swivel frame castor and features a cast iron wheel. This swivel castor is one of our 500 series range and has a maximum capacity of 500kg. The S6240 wheel is fitted with ball bearings. The swivel frame design of this castor allows full swivel rotation to enable steering. The cast iron wheel diameter is 150mm, the wheel width is 45mm and you can order separately (Part Number: Ci601).
| Product Code | S6240 |
|---|---|
| Wheel Diameter (mm) | 150 |
| Frame Type | Swivel |
| Wheel Width (mm) | 45 |
| Wheel Type | Cast Iron |
| Wheel Code | Ci1601 |
| Wheel Bearing Type | Ball Bearing |
| Castor Height (mm) | 194 |
| Swivel Radius (mm) | 130 |
| Maximum Load Capacity (kg) | 500 |
| recommended-load-capacity-kg | |
| Towable | No |
| Download CAD Drawing (STEP file) | Download |
|---|
