Description
R6145 RIGID EXCEL STAINLESS
150mm Reb Poly Wheel 300kg Capacity Castor (R6145)

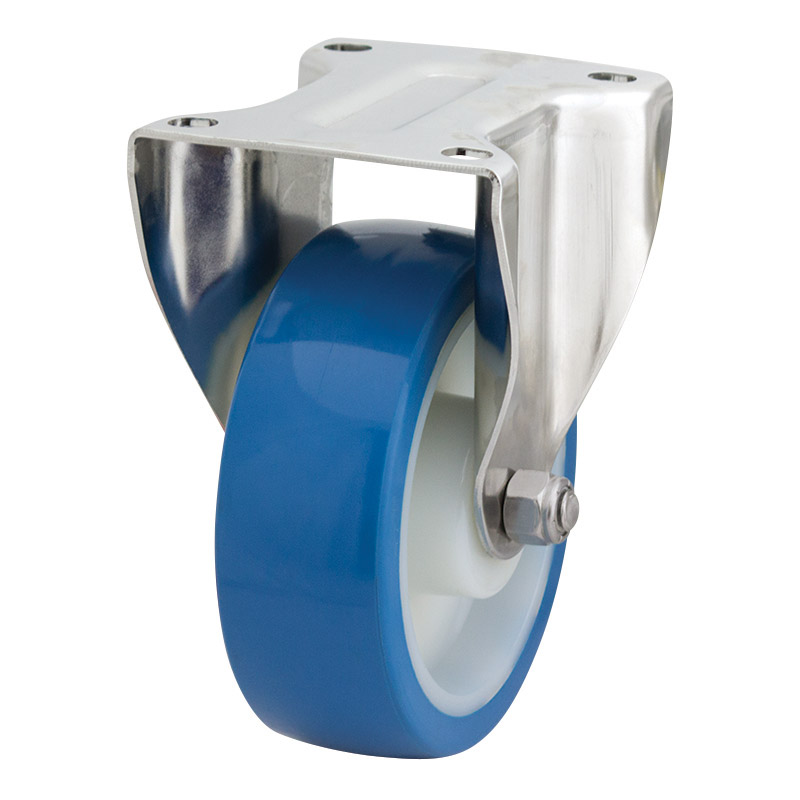

The R6145 by Richmond Wheel and Castor Co. is a rigid frame castor and features a rebound polyurethane wheel. This rigid castor is in our stainless steel excel plate range and has a maximum capacity of 300kg. The R6145 is assembled with stainless steel roller bearings on the castors axle and is baseplate mount. The rigid frame allows for linear movement and steering can be achieved by using in conjunction with swivel castors. The outside diameter of the rebound polyurethane wheel is 150mm, the wheel width is 50mm and can be ordered separately (RP6072).
| Product Code | R6145 |
|---|---|
| Wheel Diameter (mm) | 150 |
| Frame Type | Rigid |
| Wheel Width (mm) | 50 |
| Wheel Type | Rebound Polyurethane |
| Wheel Code | RP6072 |
| Wheel Bearing Type | Stainless Roller Bearing |
| Castor Height (mm) | 187 |
| Maximum Load Capacity (kg) | 300 |
| Recommended Load Capacity (kg) | 250 |
| Barcode / GTIN |
| Download CAD Drawing (STEP file) | Download |
|---|
