Description

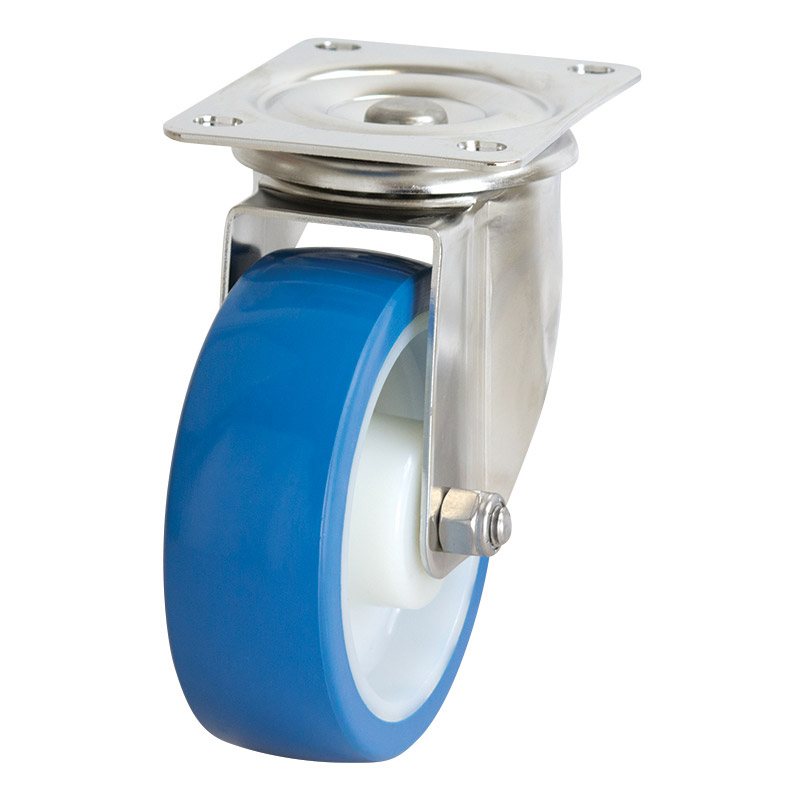

S6144 SWIVEL EXCEL S/STEEL
150mm Reb Poly Wheel 300kg Capacity Castor (S6144)
The S6144 from Richmond Wheel and Castor Co. is a swivel frame castor and is fitted with a rebound polyurethane wheel. This swivel castor is in our stainless steel excel plate range and can safely take loads up to 300kg. The S6144 is assembled with stainless steel roller bearings on the castors axle and is baseplate mount. The swivel frame allows full swivel rotation to enable steering. The overall rebound polyurethane wheel diameter is 150mm, the wheel width is 50mm and you can order separately (Part Number: RP6072). This model can also be ordered with a brake (part number S6144B).
| Product Code | S6144 |
|---|---|
| Wheel Diameter (mm) | 150 |
| Frame Type | Swivel |
| Wheel Width (mm) | 50 |
| Wheel Type | Rebound Polyurethane |
| Wheel Code | RP6072 |
| Wheel Bearing Type | Stainless Roller Bearing |
| Castor Height (mm) | 187 |
| Swivel Radius (mm) | 127 |
| Maximum Load Capacity (kg) | 300 |
| Recommended Load Capacity (kg) | 250 |
| Barcode / GTIN |
| Download CAD Drawing (STEP file) | Download |
|---|
