Description

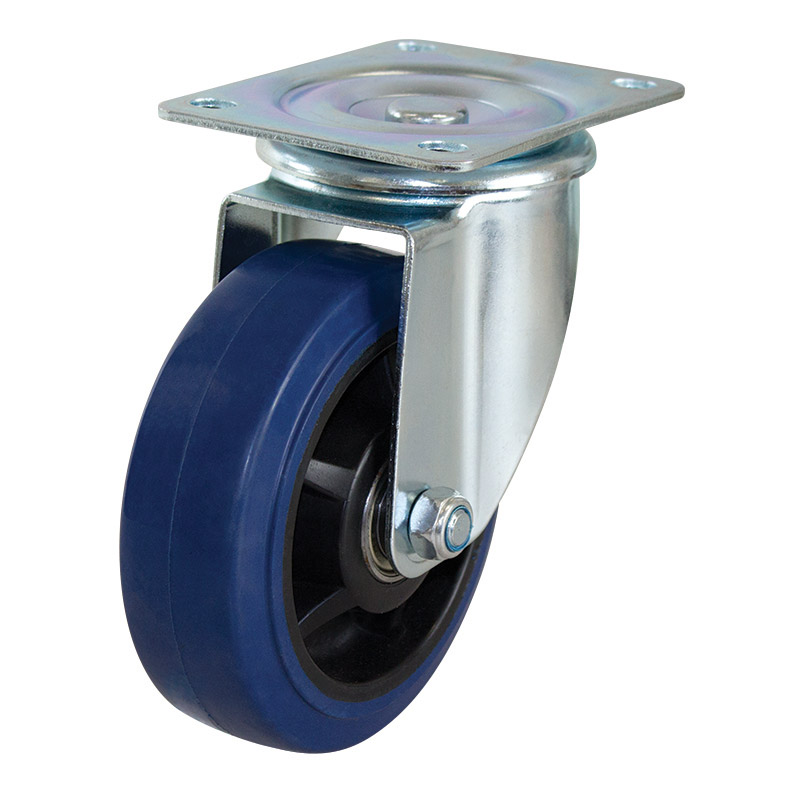

S6042 RR6677 SWIVEL 300 SERIES CASTOR
150mm Rebound Rubber Wheel 225kg Capacity Castor (S6042)
The S6042 by Richmond Wheel and Castor Co. is a swivel frame castor and uses a rebound rubber wheel. This swivel castor is part of our 300 series plate range and has a top load capacity of 225kg. The S6042 uses ball bearings for wheel rotation and is mounted with the baseplate. This castors swivel frame allows the castor to swivel 360°. The outside diameter of the rebound rubber wheel is 150mm, the wheel width is 45mm and can be ordered separately (RR6677). This model can also be ordered with a brake (part number S6042B).
| Product Code | S6042 |
|---|---|
| Wheel Diameter (mm) | 150 |
| Frame Type | Swivel |
| Wheel Width (mm) | 45 |
| Wheel Type | Rebound Rubber |
| Wheel Code | RR6677 |
| Wheel Bearing Type | Ball Bearing |
| Castor Height (mm) | 187 |
| Swivel Radius (mm) | 112 |
| Maximum Load Capacity (kg) | 225 |
| Recommended Load Capacity (kg) | 200 |
| Download CAD Drawing (STEP file) | Download |
|---|
