Description
S6042B RR6677 SWIVEL 300 SERIES CASTR

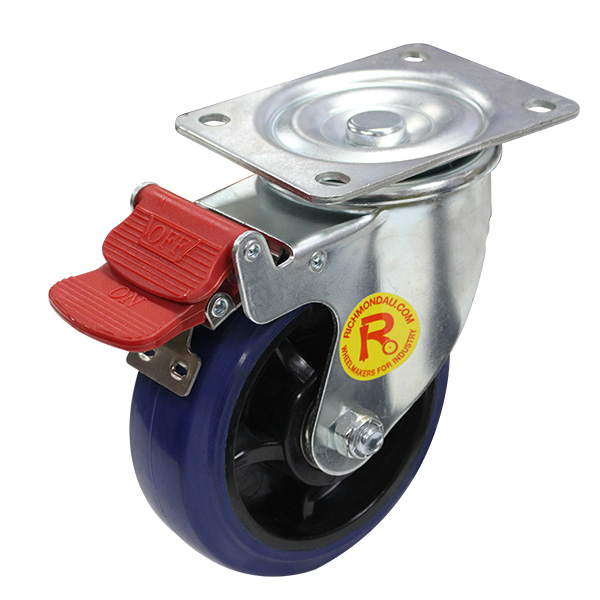

150mm Rebound Rubber Wheel 225kg Capacity Castor (S6042B)
The S6042B from Richmond is a swivel frame castor and is fitted with a rebound rubber wheel. This swivel castor is part of our 300 series plate range and has a top load capacity of 225kg. The S6042B uses ball bearings for wheel rotation and is baseplate mount. The swivel frame design of this castor allows full swivel rotation to enable steering. The rebound rubber wheel diameter is 150mm, the wheel width is 45mm and can be ordered separately (RR6677). For the same castor without a brake, see S6042.
| Product Code | S6042B |
|---|---|
| Wheel Diameter (mm) | 150 |
| Frame Type | Swivel with Brake |
| Wheel Width (mm) | 45 |
| Wheel Type | Rebound Rubber |
| Wheel Code | RR6677 |
| Wheel Bearing Type | Ball Bearing |
| Castor Height (mm) | 187 |
| Swivel Radius (mm) | 125 |
| Maximum Load Capacity (kg) | 225 |
| Recommended Load Capacity (kg) | 200 |
| Download CAD Drawing (STEP file) | Download |
|---|
