S8054 RP8072 SWIVEL 300 SERIES CASTOR

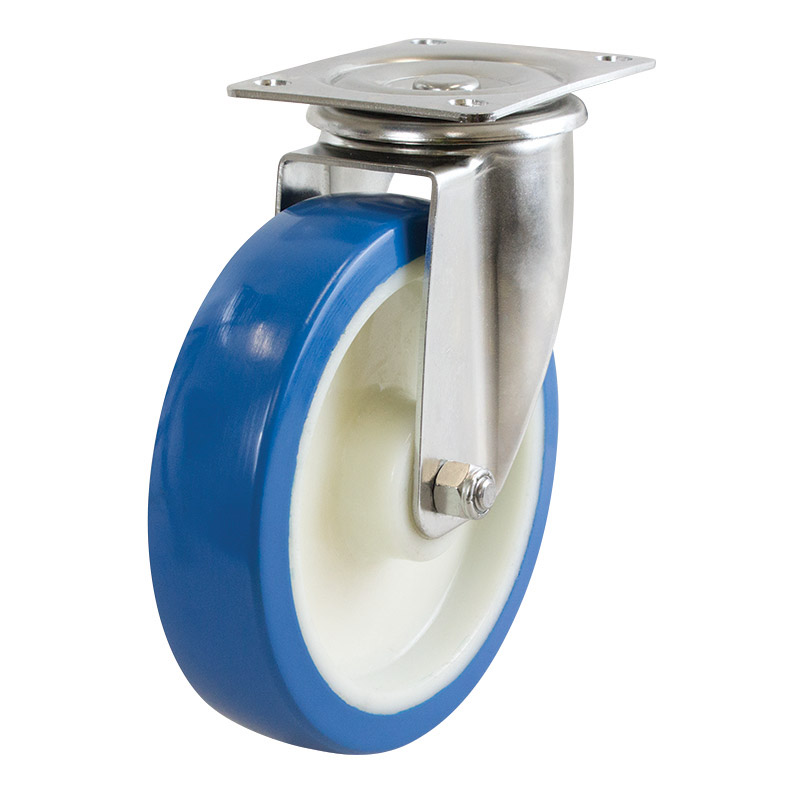

200mm Rebound Polyurethane Wheel 250kg Capacity Castor (S8054)
The S8054 by Richmond Wheel and Castor Co. is a swivel frame castor and features a rebound polyurethane wheel. This swivel castor is in our 300 series plate range and can hold loads up to 250kg. The S8054 uses stainless steel roller bearings for wheel rotation and is mounted with the baseplate. This castors swivel frame allows for full 360° swivel rotation. The outside diameter of the rebound polyurethane wheel is 200mm, the wheel width is 50mm and can be ordered separately (RP8072). This model can also be ordered with a brake (part number S8054B).
| Product Code | S8054 |
|---|---|
| Wheel Diameter (mm) | 200 |
| Frame Type | Swivel |
| Wheel Width (mm) | 50 |
| Wheel Type | Rebound Polyurethane |
| Wheel Code | RP8072 |
| Wheel Bearing Type | Stainless Roller Bearing |
| Castor Height (mm) | 237 |
| Swivel Radius (mm) | 156 |
| Maximum Load Capacity (kg) | 250 |
| Recommended Load Capacity (kg) | 225 |
| Download CAD Drawing (STEP file) | Download |
|---|
