Description
S8230D SWIVEL 500 SERIES C/W 4WDL

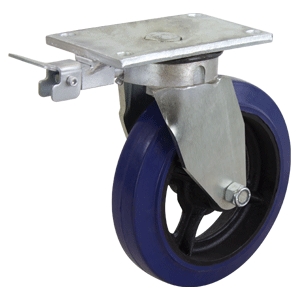

200mm Rubber Wheel 250kg Capacity Castor (S8230D)
The S8230D manufactured by Richmond is a swivel frame castor and has a rubber wheel. This swivel castor is part of our 500 series range and has a top load capacity of 250kg. The S8230D uses roller bearings for wheel rotation. The swivel frame allows for full 360° swivel rotation. The overall rubber wheel diameter is 200mm, the wheel width is 50mm and you can order separately (Part Number: RT8842). This model can also be ordered without the direction lock (part number S8230).
| Product Code | S8230D |
|---|---|
| Wheel Diameter (mm) | 200 |
| Frame Type | Swivel with Directional Lock |
| Wheel Width (mm) | 50 |
| Wheel Type | Rubber |
| Wheel Code | RT8842 |
| Wheel Bearing Type | Roller Bearing |
| Castor Height (mm) | 248 |
| Swivel Radius (mm) | 155 |
| Maximum Load Capacity (kg) | 250 |
| recommended-load-capacity-kg | |
| Towable | No |
