Description
S1034B FORGED CASTOR CW PU1030

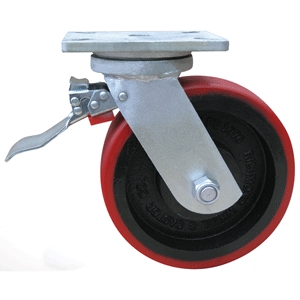

250mm Poly Wheel 1500Kg Capacity Castor (S1034B)
The S1034B by Richmond Wheel and Castor Co. is a swivel frame castor and has a polyurethane wheel. This swivel castor is part of our forged head series range and has a maximum capacity of 1500kg. The S1034B is assembled with ball bearings on the castors axle. The swivel frame design of this castor allows the load to be steered. The diameter of the polyurethane wheel is 250mm, the wheel width is 75mm and can be ordered separately (PU1030). This model can also be ordered without a brake (part number S1034).
| Product Code | S1034B |
|---|---|
| Wheel Diameter (mm) | 250 |
| Frame Type | Swivel with Brake |
| Wheel Width (mm) | 75 |
| Wheel Type | Polyurethane Tyred Cast Iron Centred |
| Wheel Code | PU1030 |
| Wheel Bearing Type | Ball Bearing |
| Castor Height (mm) | 317 |
| Swivel Radius (mm) | 194 |
| Maximum Load Capacity (kg) | 1500 |
| Towable | Yes |
