Description
S1034D FORGED CASTOR CW PU1030

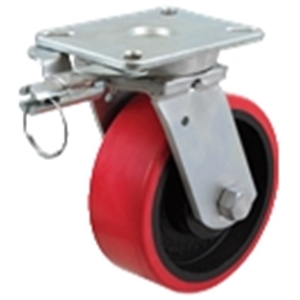

250mm Poly Wheel 1500Kg Capacity Castor (S1034D)
The S1034D uses ball bearings for wheel rotation. The swivel frame allows the castor to swivel 360°. The overall polyurethane wheel diameter is 250mm, the wheel width is 75mm and you can order separately (Part Number: PU1030). To order this castor without the direction lock, search for S1034. This castor includes a directional lock – This feature locks the swivel direction of the castor but still allows the wheel to turn. When the directional lock is released, full swivel function is returned to the castor. Castors with a directional lock are indicated by a ‘D’ at the end of the castor code.
| Product Code | S1034D |
|---|---|
| Wheel Diameter (mm) | 250 |
| Frame Type | Swivel with Directional Lock |
| Wheel Width (mm) | 75 |
| Wheel Type | Polyurethane Tyred Cast Iron Centred |
| Wheel Code | PU1030 |
| Wheel Bearing Type | Ball Bearing |
| Castor Height (mm) | 317 |
| Swivel Radius (mm) | 194 |
| Maximum Load Capacity (kg) | 1500 |
| Towable | Yes |
