S1032 FORGED CASTOR C/W SG1027

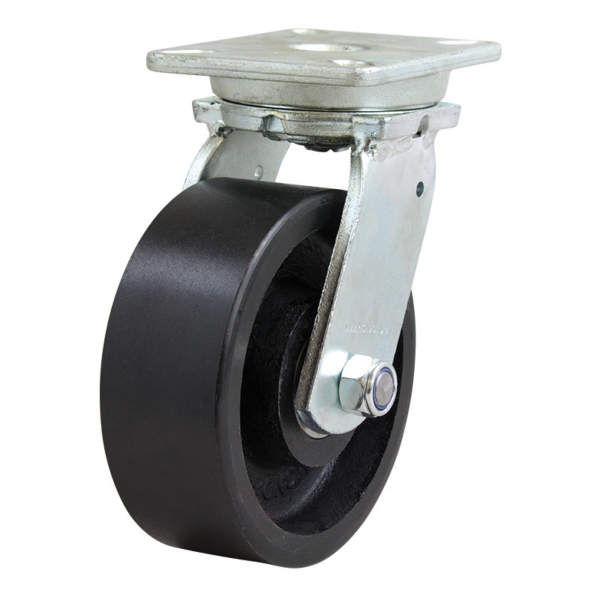

250mm SG Iron Wheel 1500Kg Capacity Castor (S1032)
The S1032 from Richmond is a swivel frame castor and uses a semi pneumatic wheel. This swivel castor is part of our forged head series range and can hold loads up to 1500kg. The S1032 is assembled with ball bearings on the castors axle. The swivel frame design of this castor allows full swivel rotation to enable steering. The diameter of the semi pneumatic wheel is 250mm, the wheel width is 75mm and you can order separately (Part Number: SG1027). For the same castor with a brake, see S1032B.
| Product Code | S1032 |
|---|---|
| Wheel Diameter (mm) | 250 |
| Frame Type | Swivel |
| Wheel Width (mm) | 75 |
| Wheel Type | SG Iron |
| Wheel Code | SG1027 |
| Wheel Bearing Type | Ball Bearing |
| Castor Height (mm) | 317 |
| Swivel Radius (mm) | 194 |
| Maximum Load Capacity (kg) | 1500 |
| Towable | No |
