Description
S2714B UTILITY BOLT HOLE

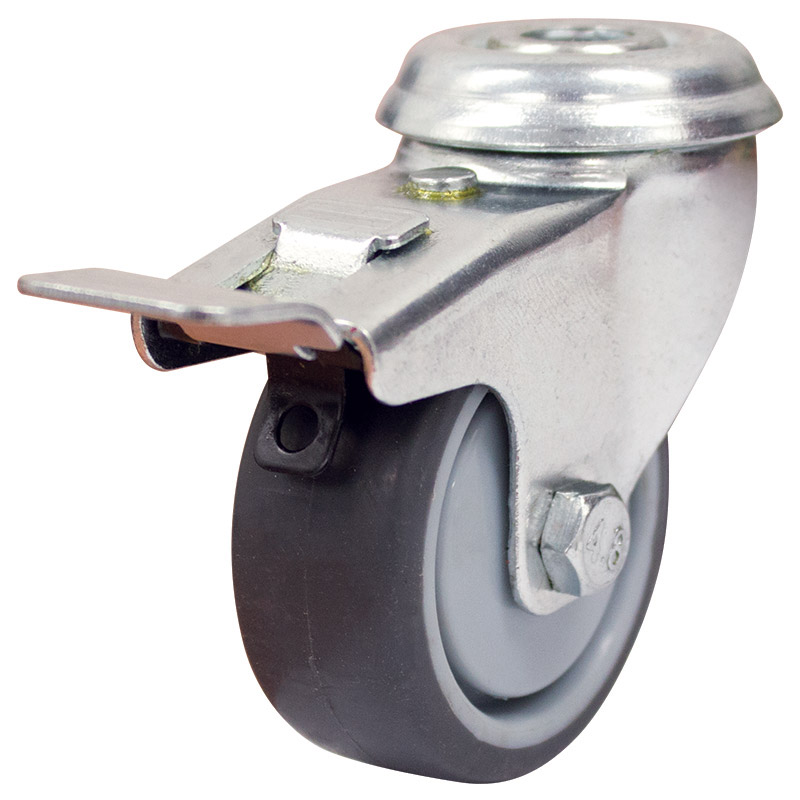

50mm Rubber Wheel 30kg Capacity Castor (S2714B)
The S2714B from Richmond Wheel and Castor Co. is a swivel frame castor and is fitted with a institutional rubber wheel. This swivel castor is in our utility series range and has a maximum capacity of 30kg. The S2714B uses ball bearings for wheel rotation. The swivel frame design of this castor permits the load to be steered. The diameter of the institutional rubber wheel is 50mm, the wheel width is 20mm. This model can also be ordered without a brake (part number S2714).
| Product Code | S2714B |
|---|---|
| Wheel Diameter (mm) | 50 |
| Frame Type | Swivel with Brake |
| Wheel Width (mm) | 20 |
| Wheel Type | Institutional Rubber |
| Wheel Code | IR2201 |
| Wheel Bearing Type | Ball Bearing |
| Castor Height (mm) | 68 |
| Swivel Radius (mm) | 75 |
| Bolt Hole Size (mm) | 10 |
| Maximum Load Capacity (kg) | 30 |
| Recommended Load Capacity (kg) | 20 |
Shipping Information
Flat rate shipping for all metropolitan and major regional locations where a Richmond Wheel & Castor warehouse is located.
Shipping will be calculated at checkout.
For more information on our freight charges, click & collect locations, and more
view our online shipping policy
*Not all items are available for purchase online.
Product FAQs
Fitting this castor to a 20mm thick base requires a 40mm x 10mm set screw.
These castors have a 10mm bolt hole but can be reduced to suit an 8mm bolt with a reduction bush (top hat). See part number 100RED1008UTI.
